Camshaft Position Actuator Solenoid Valve Solenoid Replacement - Exhaust
WARNING: This page is about a different variant/trim than selected.

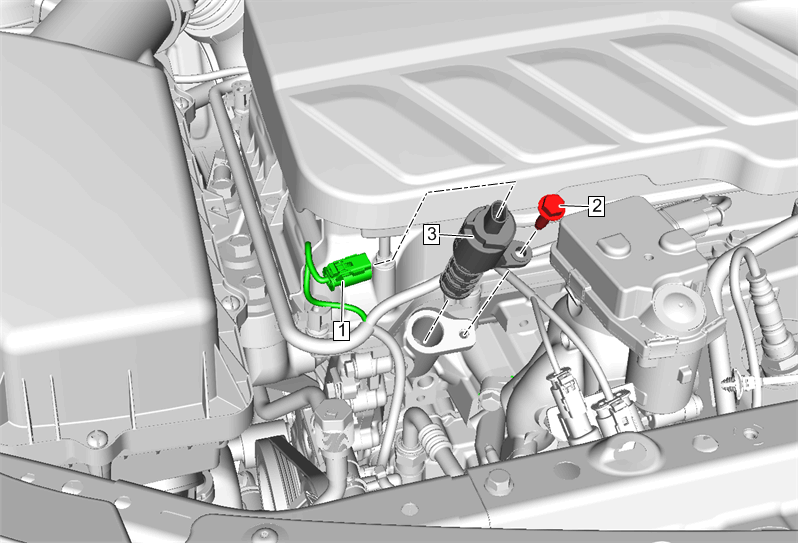

| Callout | Component Name |
|---|---|
| 1 | Electrical Connector |
| 2 | Camshaft Position Actuator Solenoid Valve Bolt
CAUTION:
Refer to Fastener Caution
. Tighten 10 N.m (89 lb in) |
| 3 | Camshaft Position Actuator Solenoid Valve
NOTE:
Inspect the camshaft position actuator solenoid valve o-ring and replace as necessary.
|
