Air Cleaner Element Replacement
WARNING: This page is about a different variant/trim than selected.

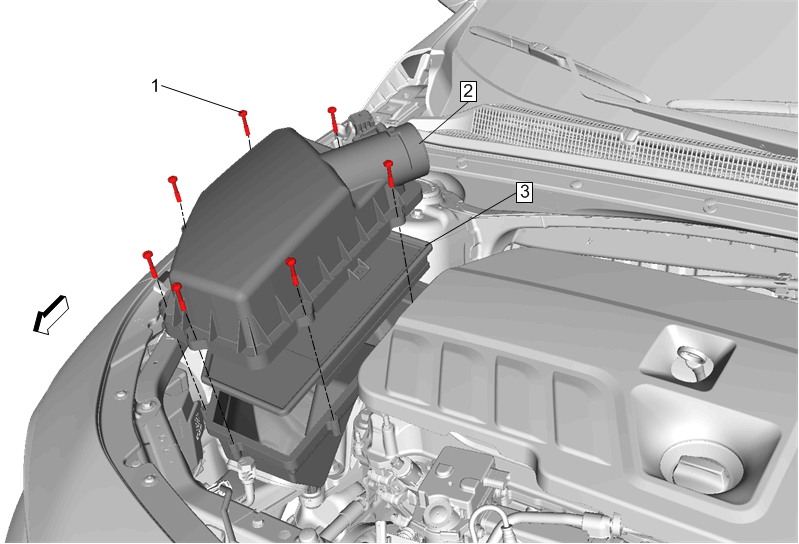

| Callout | Component Name |
|---|---|
| Preliminary Procedure Unclip the wiring harness from the air cleaner upper cover. |
|
| 1 | Air Cleaner Upper Housing Bolt [7x]
CAUTION:
Refer to Fastener Caution
. Tighten 4 N.m (35 lb in) |
| 2 | Air Cleaner Upper Housing |
| 3 | Air Cleaner Element Procedure Reposition the air cleaner upper housing as necessary to remove the element. |
