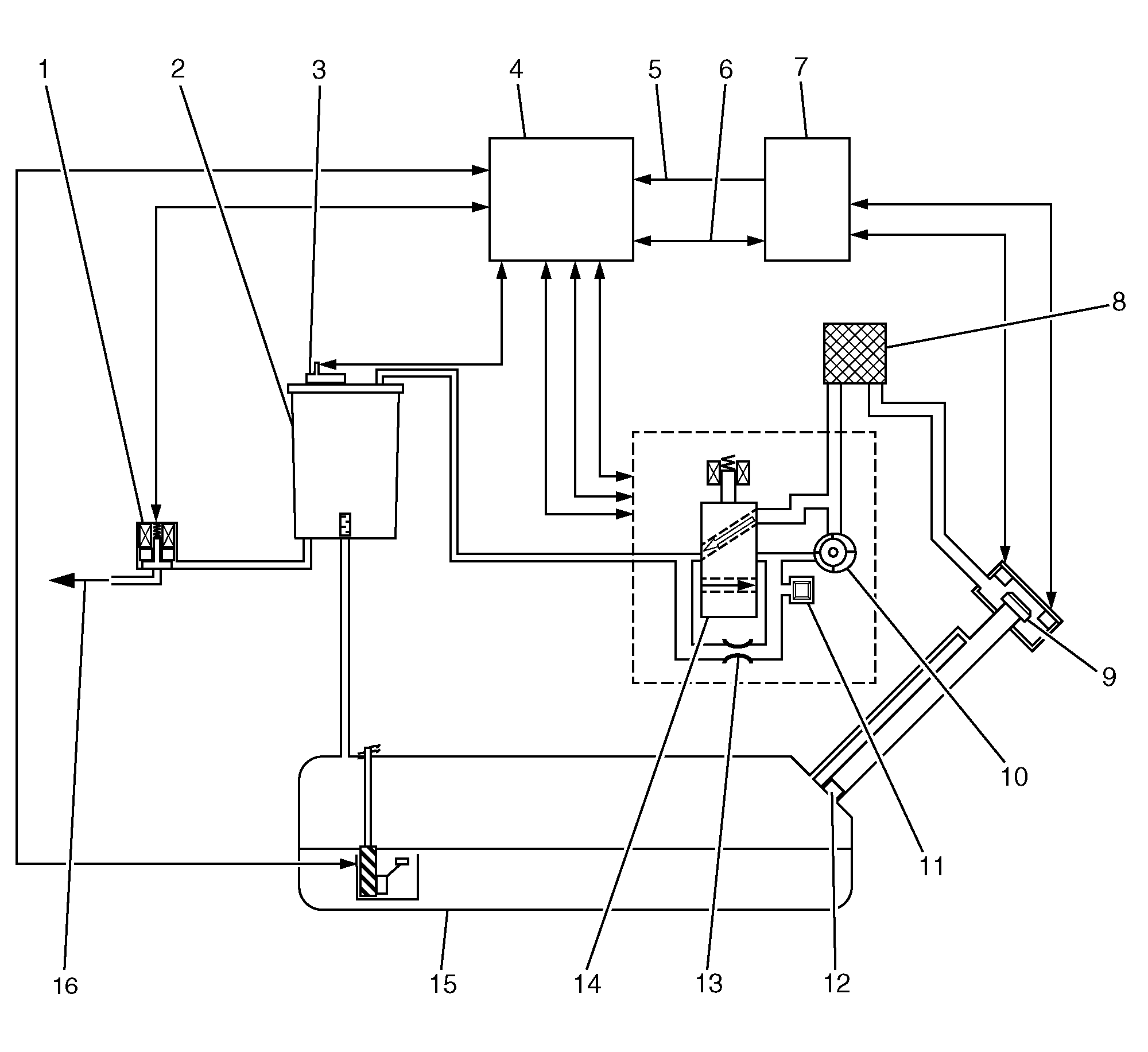

Typical Evaporative Emission (EVAP) System (Hybrid Enhanced-Open) Hose Routing Diagram
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 1 | Evaporative Emissions (EVAP) Purge Solenoid Valve |
| 2 | EVAP Canister |
| 3 | Fuel Tank Pressure Sensor |
| 4 | Engine Control Module (ECM) |
| 5 | Accessory Wake-up Line |
| 6 | Serial Data Communication |
| 7 | Hybrid Powertrain Control Module 2 with Alarm Clock |
| 8 | Fresh Air Filter |
| 9 | Fuel Filler Cap/Capless if equipped |
| 10 | EVAP Leak Detection Pump |
| 11 | EVAP Leak Detection Pump Sensor |
| 12 | Fuel Fill Pipe Inlet Check Valve |
| 13 | EVAP Leak Detection Pump Reference Orifice 0.51 mm (0.020 in) |
| 14 | EVAP Leak Detection Pump Switching Valve |
| 15 | Fuel Tank |
| 16 | To Engine Intake Manifold Vacuum |
