Section 30 (Engine Controls And Fuel - 1.8L (LKN) - Schematic Wiring Diagrams)
>>
Schematic Wiring Diagrams
>>
Engine Controls Wiring Schematics
>>
Power, Ground, Serial Data and MIL
Power, Ground, Serial Data and MIL
WARNING:
This page is about a different variant/trim than selected.

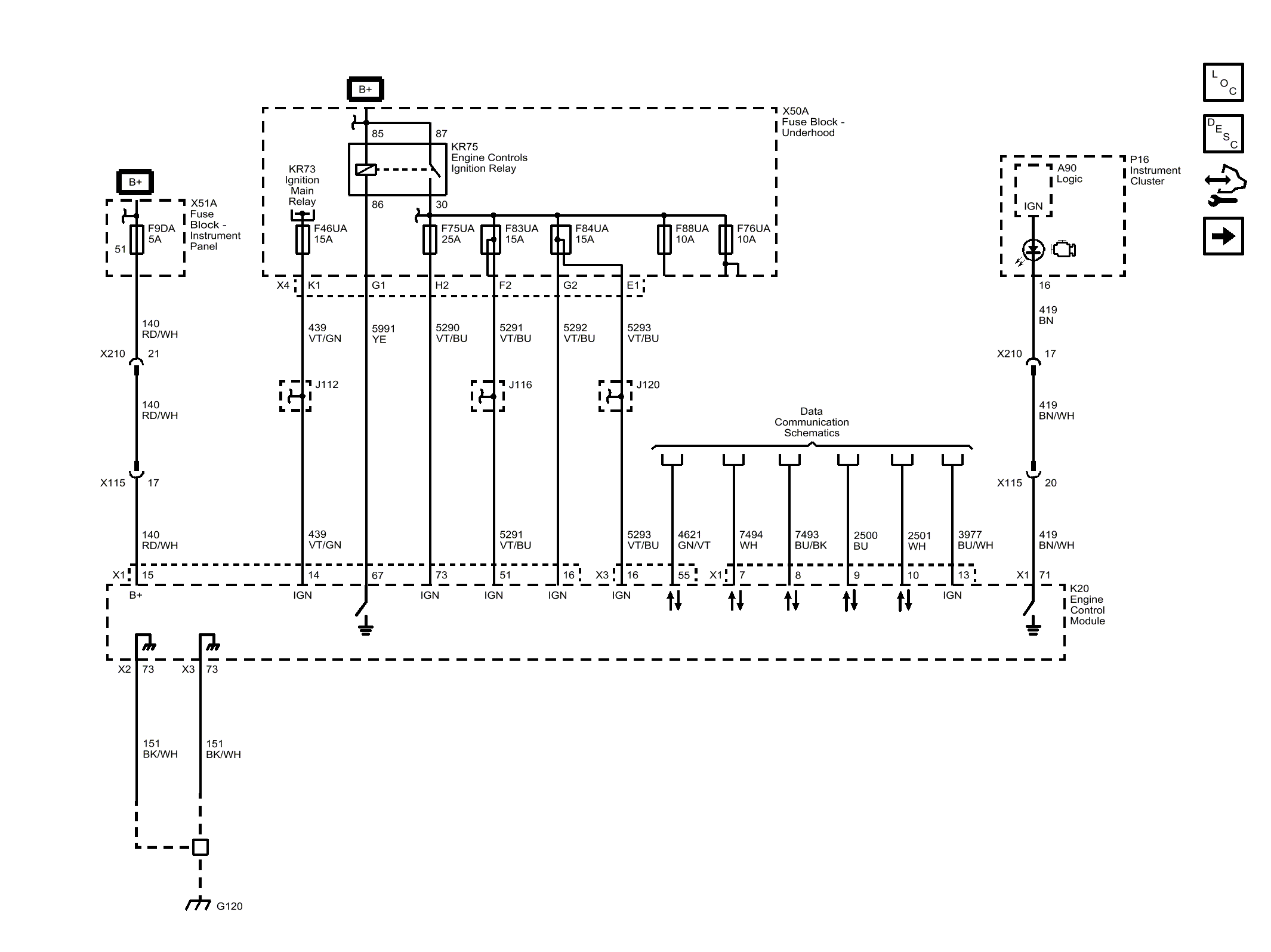

Fig 1: Power, Ground, Serial Data and MIL
Courtesy of GENERAL MOTORS COMPANY
