Ignition Controls - Camshaft Solenoids, Camshaft, Crankshaft and Knock Sensors

WARNING: This page is about a different variant/trim than selected.

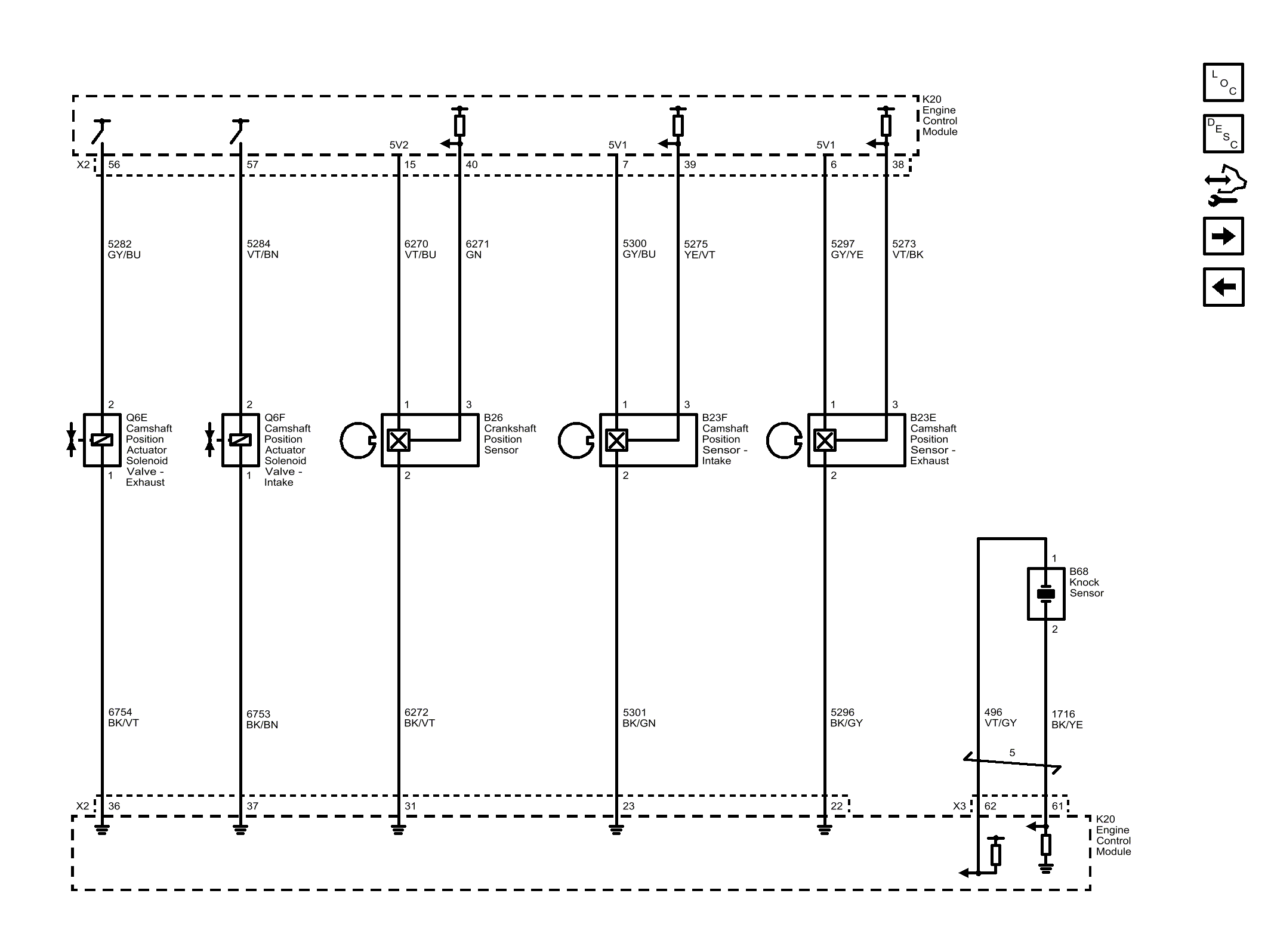

Fig 1: Ignition Controls - Camshaft Solenoids, Camshaft, Crankshaft and Knock Sensors
GM4475280Courtesy of GENERAL MOTORS COMPANY
