Section 30 (Engine Controls And Fuel - 1.8L (LKN) - Schematic Wiring Diagrams)
>>
Schematic Wiring Diagrams
>>
Engine Controls Wiring Schematics
>>
5V1 and Low Reference Bus (1 of 3)
5V1 and Low Reference Bus (1 of 3)
WARNING:
This page is about a different variant/trim than selected.

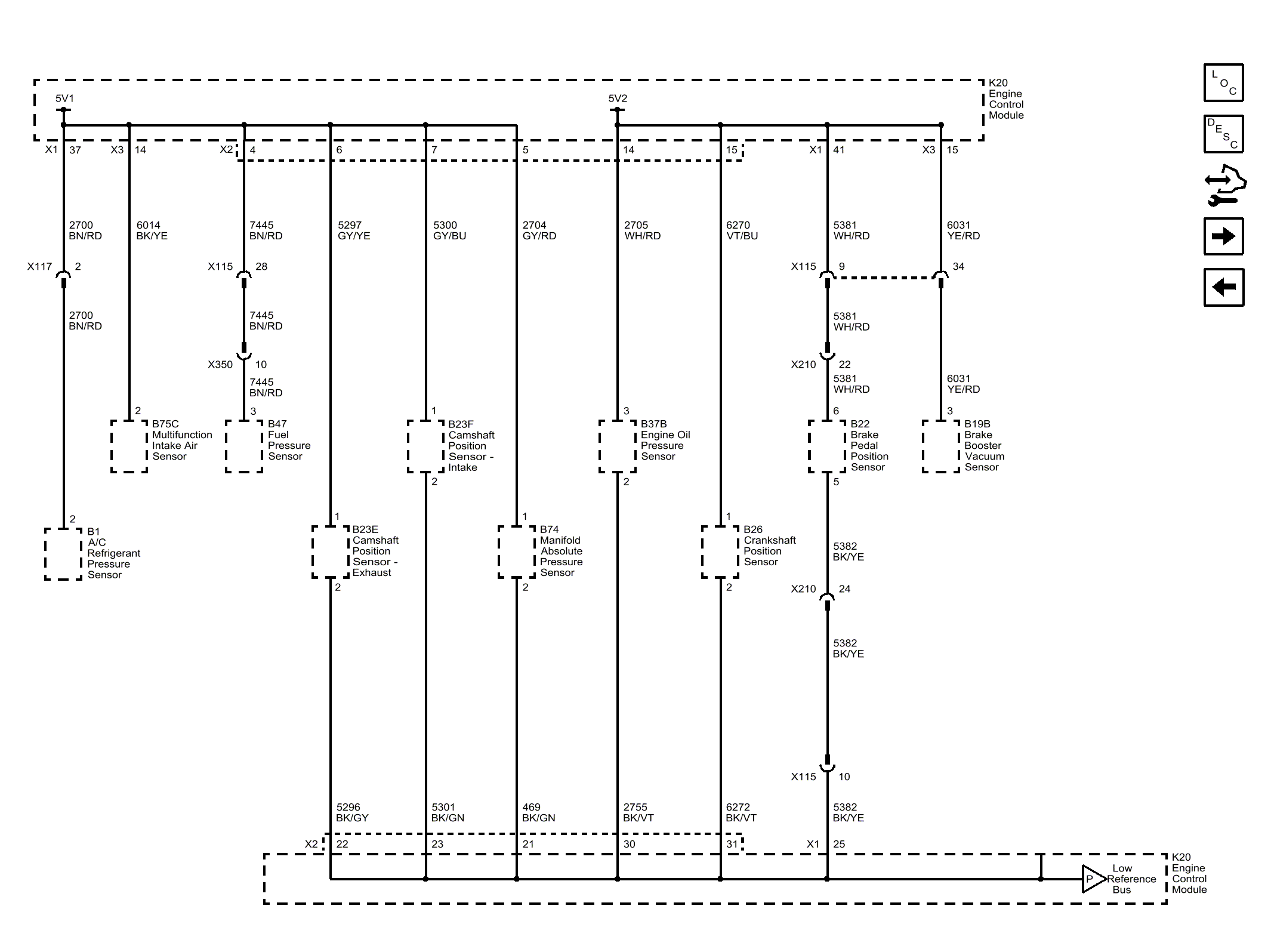

Fig 1: 5V1, and Low Reference Bus (1 of 3)
Courtesy of GENERAL MOTORS COMPANY
