Section 3 (Hybrid/EV System Heating And Cooling)
>>
Schematic and Routing Diagrams
>>
Hybrid/EV Cooling Wiring Schematics
>>
Hybrid/EV Electronics Cooling
Hybrid/EV Electronics Cooling
WARNING:
This page is about a different variant/trim than selected.

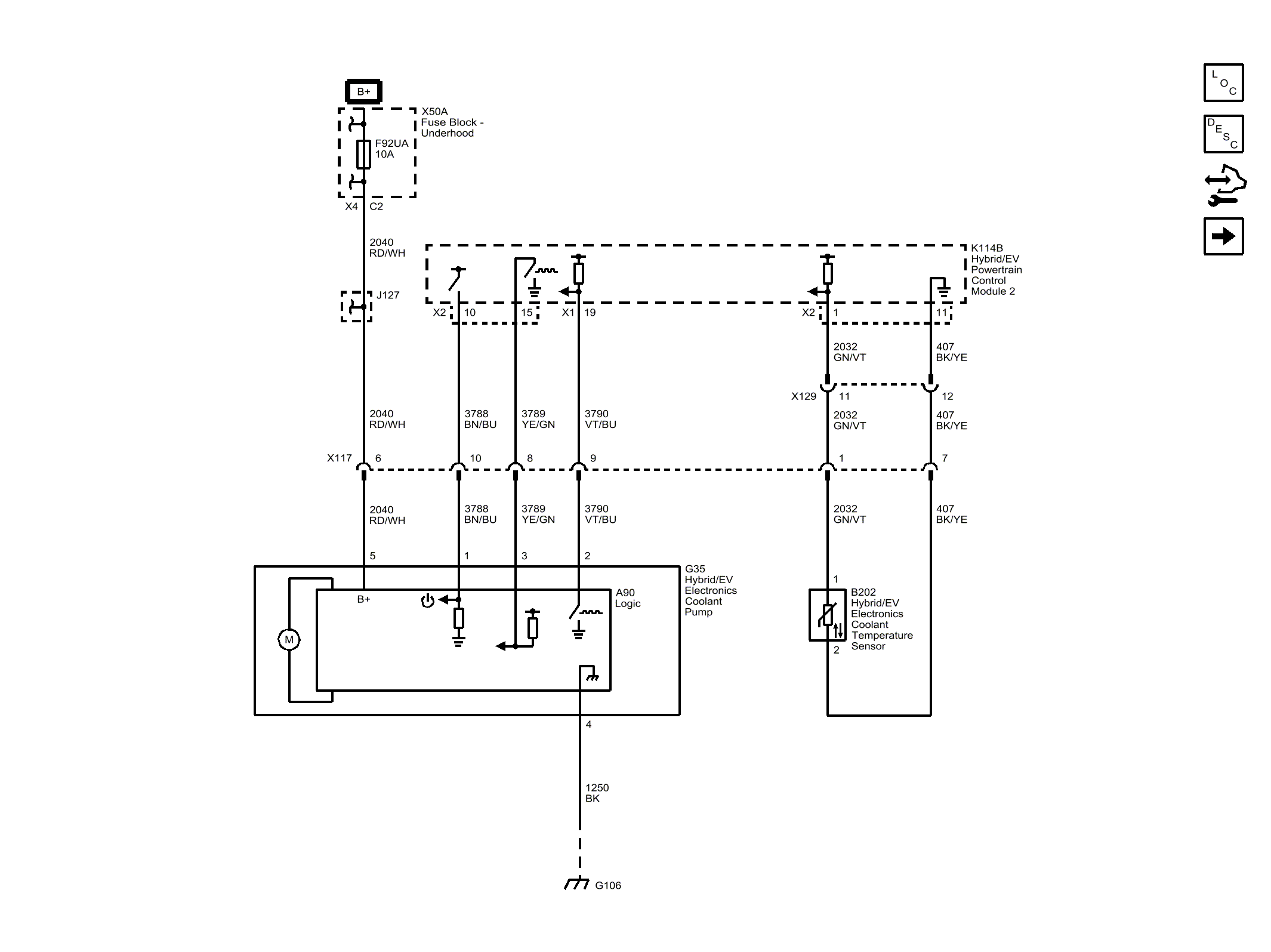

Fig 1: Hybrid/EV Electronics Cooling
Courtesy of GENERAL MOTORS COMPANY
