Section 3 (Hybrid/EV System Heating And Cooling)
>>
Schematic and Routing Diagrams
>>
Hybrid/EV Cooling Wiring Schematics
>>
Hybrid/EV Battery Modules - Temperature Sensors 1 through 8
Hybrid/EV Battery Modules - Temperature Sensors 1 through 8
WARNING:
This page is about a different variant/trim than selected.

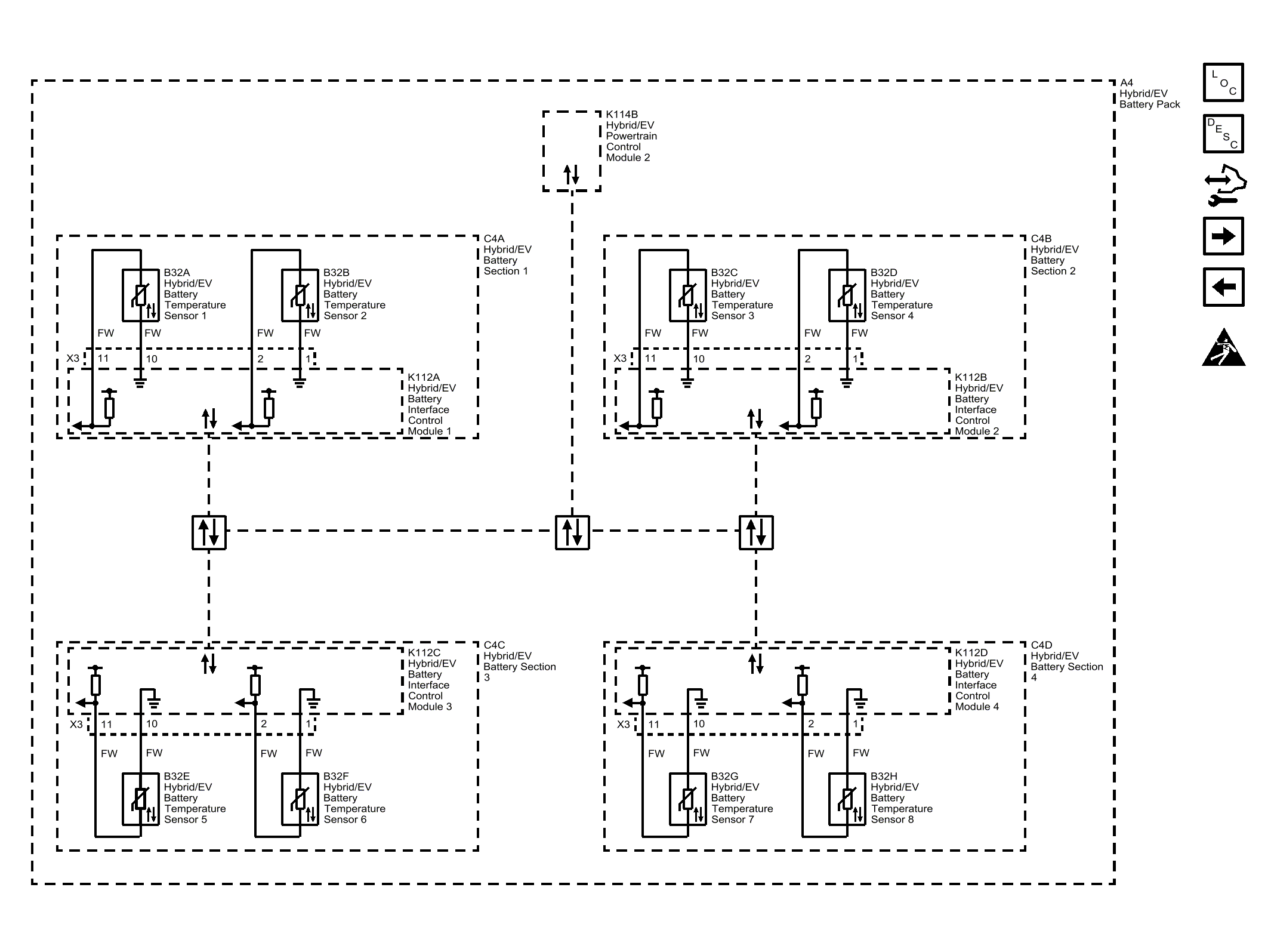

Fig 1: Hybrid/EV Battery Modules - Temperature Sensors 1 through 8
Courtesy of GENERAL MOTORS COMPANY
