Installation Procedure

WARNING: This page is about a different variant/trim than selected.

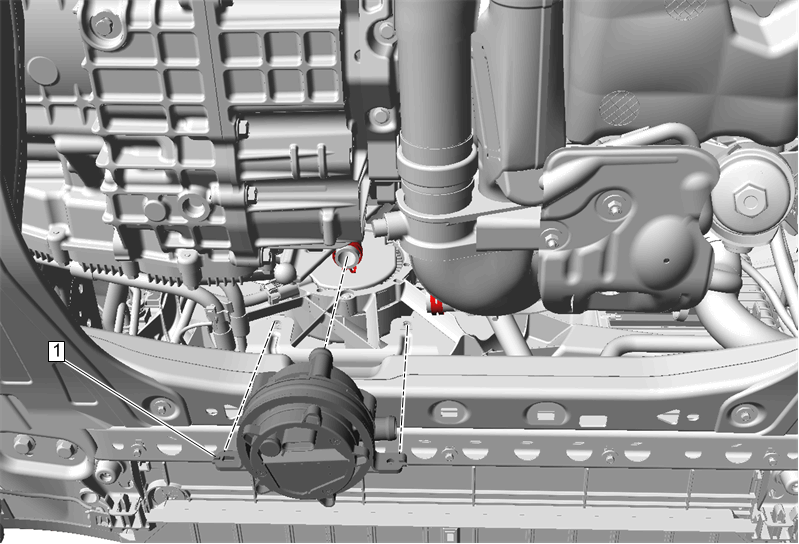

  1. Generator Control Module Coolant Pump (1) - Install
    Fig 1: Generator Control Module Coolant Pump
    GM4322550Courtesy of GENERAL MOTORS COMPANY

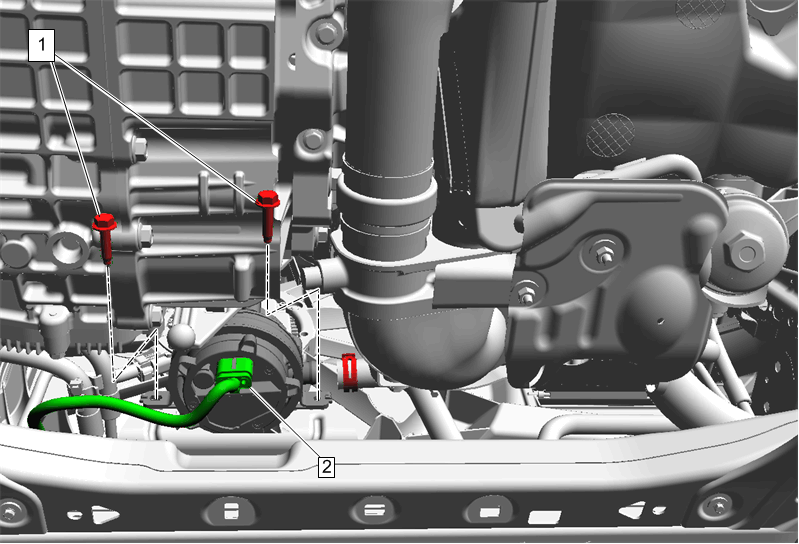

  2. Generator Control Module Coolant Pump Bracket Bolt (1) - Install and tighten [2x] 9 N.m (80 lb in)
    Fig 2: Generator Control Module Coolant Pump Bracket Bolt
    GM4322552Courtesy of GENERAL MOTORS COMPANY
    CAUTION: Refer to Fastener Caution .
  3. Connect the electrical connector. (2)

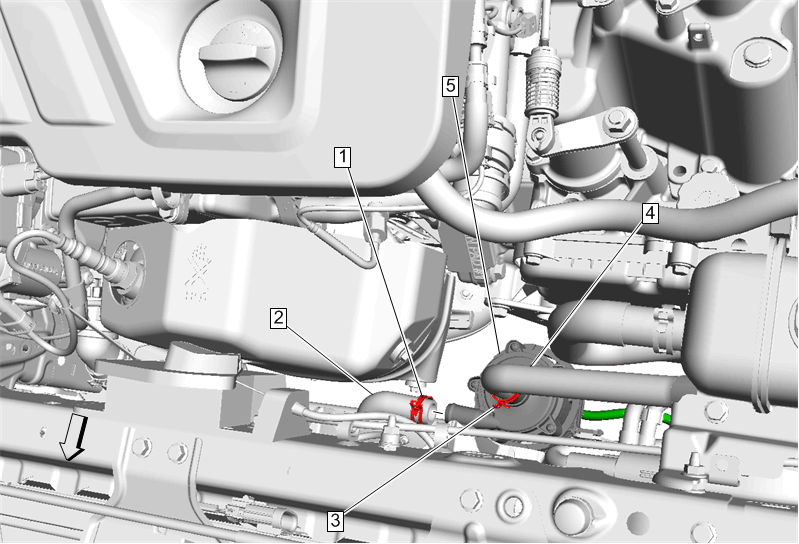

  4. Drive Motor Generator Power Inverter Module Pump Cooling Inlet Hose (4) @ Generator Control Module Coolant Pump (5) - Install
    Fig 3: Generator Control Module Coolant Pump Hose Clamp
    GM4322564Courtesy of GENERAL MOTORS COMPANY
  5. Generator Control Module Coolant Pump Hose Clamp (3) - Engage Hose Clamp Replacement Guidelines - Spring Type
  6. Drive Motor Generator Control Module Coolant Pump Hose (2) @ Generator Control Module Coolant Pump (5) - Install
  7. Generator Control Module Coolant Pump Hose Clamp (1) - Engage Hose Clamp Replacement Guidelines - Spring Type
  8. Fill the drive motor generator power inverter module cooling system. Refer to Drive Motor Generator Power Inverter Module Cooling System Draining and Filling
  9. Inspect for coolant leaks.
