Vac-N-Fill Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Turn Vehicle Power Off and remove all keyless entry transmitters from the vehicle and secure in a place outside the vehicle.
  2. Install GE-46143  Cooling System Adapter

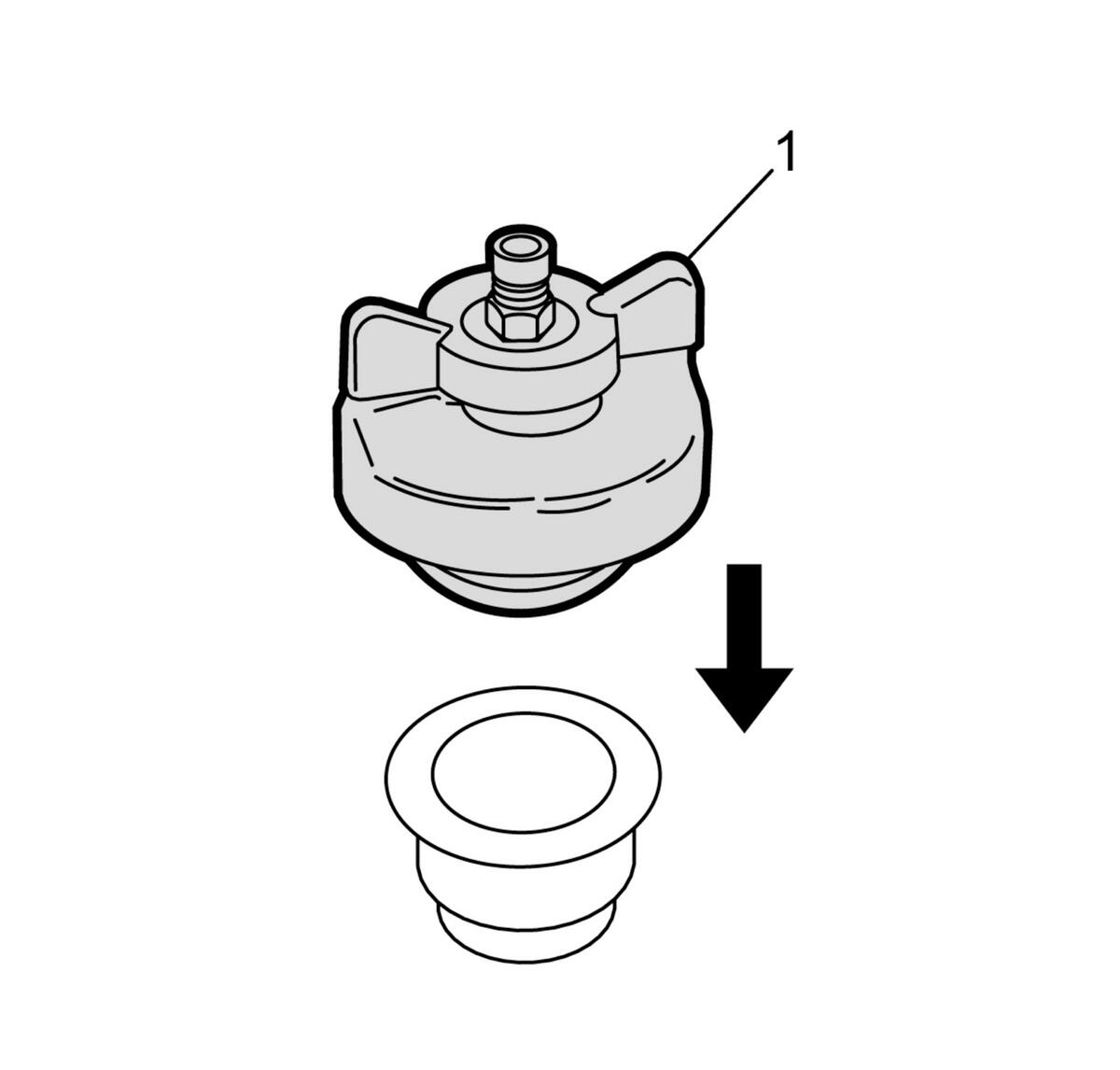

    Fig 1: Radiator Cap & Surge Tank Test Adapter
    GM2846164Courtesy of GENERAL MOTORS COMPANY
    NOTE: To prevent boiling of the coolant/water mixture in the vehicles cooling system, do not apply vacuum to a cooling system above 49°C (120°F). The tool will not operate properly when the coolant is boiling.
  3. Attach the Vac-N-Fill cap (1) to GE-46143  Cooling System Adapter.
  4. Attach the vacuum gauge assembly (1) to the Vac-N-Fill cap (2).
    Fig 2: Vacuum Gauge Assembly & Vac N Fill Cap
    GM2846165Courtesy of GENERAL MOTORS COMPANY
  5. Attach the fill hose (1) to the barb fitting on the vacuum gauge assembly (2).

    Ensure that the valve is closed.

    Fig 3: Vacuum Gauge Assembly & Fill Hose
    GM2846166Courtesy of GENERAL MOTORS COMPANY
  6. Pour the coolant mixture into the graduated reservoir (1).
    Fig 4: Graduated Reservoir, Vacuum Tank & Cut-Out Area
    GM2846170Courtesy of GENERAL MOTORS COMPANY
    NOTE: Use a Pre-mixed DEXCOOL® (50/50 mixture of DEXCOOL® and deionized water). Always use more coolant than necessary. This will eliminate air from being drawn into the cooling system.
  7. Place the fill hose in the graduated reservoir (1).
  8. Install the vacuum tank (2) on the graduated reservoir with the fill hose routed through the cut-out area (3) in the vacuum tank.
    NOTE: Prior to installing the vacuum tank onto the graduated reservoir, ensure that the drain valve located on the bottom of the tank is closed.
  9. Attach the venturi assembly (1) to the vacuum tank (2).
    Fig 5: Vacuum Tank & Venturi Assembly
    GM2846171Courtesy of GENERAL MOTORS COMPANY
  10. Attach a shop air hose to the venturi assembly (1).

    Ensure the valve (2) on the venturi assembly is closed.

    Fig 6: Venturi Assembly & Valve
    GM2846172Courtesy of GENERAL MOTORS COMPANY
  11. Attach the vacuum hose (1) to the vacuum gauge assembly (2) and the vacuum tank (3).
    Fig 7: Vacuum Hose, Gauge Assembly & Tank
    GM2846173Courtesy of GENERAL MOTORS COMPANY
  12. Open the valve (1) on the venturi assembly (2). The vacuum gauge will begin to rise and a hissing noise will be present.
    Fig 8: Valve & Venturi Assembly
    GM2846175Courtesy of GENERAL MOTORS COMPANY
  13. Continue to draw vacuum until the needle stops rising (1). This should be 610 - 660 mm Hg (24 - 26 in Hg).

    Cooling hoses may start to collapse. This is normal due to vacuum draw.

    Fig 9: Vacuum Gauge Needle
    GM2846177Courtesy of GENERAL MOTORS COMPANY
  14. To aid in the fill process, position the graduated reservoir above the coolant fill port.
  15. Slowly open the valve (1) on the vacuum gauge assembly (2). When the coolant reaches the top of the fill hose, close the valve. This will eliminate air from the fill hose.
    Fig 10: Vacuum Gauge Assembly & Needle
    GM2846183Courtesy of GENERAL MOTORS COMPANY
  16. Close the valve on the venturi assembly.
  17. If there is a suspected leak in the cooling system, allow the system to stabilize under vacuum and monitor for vacuum loss.

    If vacuum loss is observed, refer to Loss of Coolant .

  18. Open the valve on the vacuum gauge assembly. The vacuum gauge will drop as coolant is drawn into the system.
  19. Once the vacuum gauge reaches zero (1), close the valve on the vacuum gauge assembly and repeat steps 12 - 18.

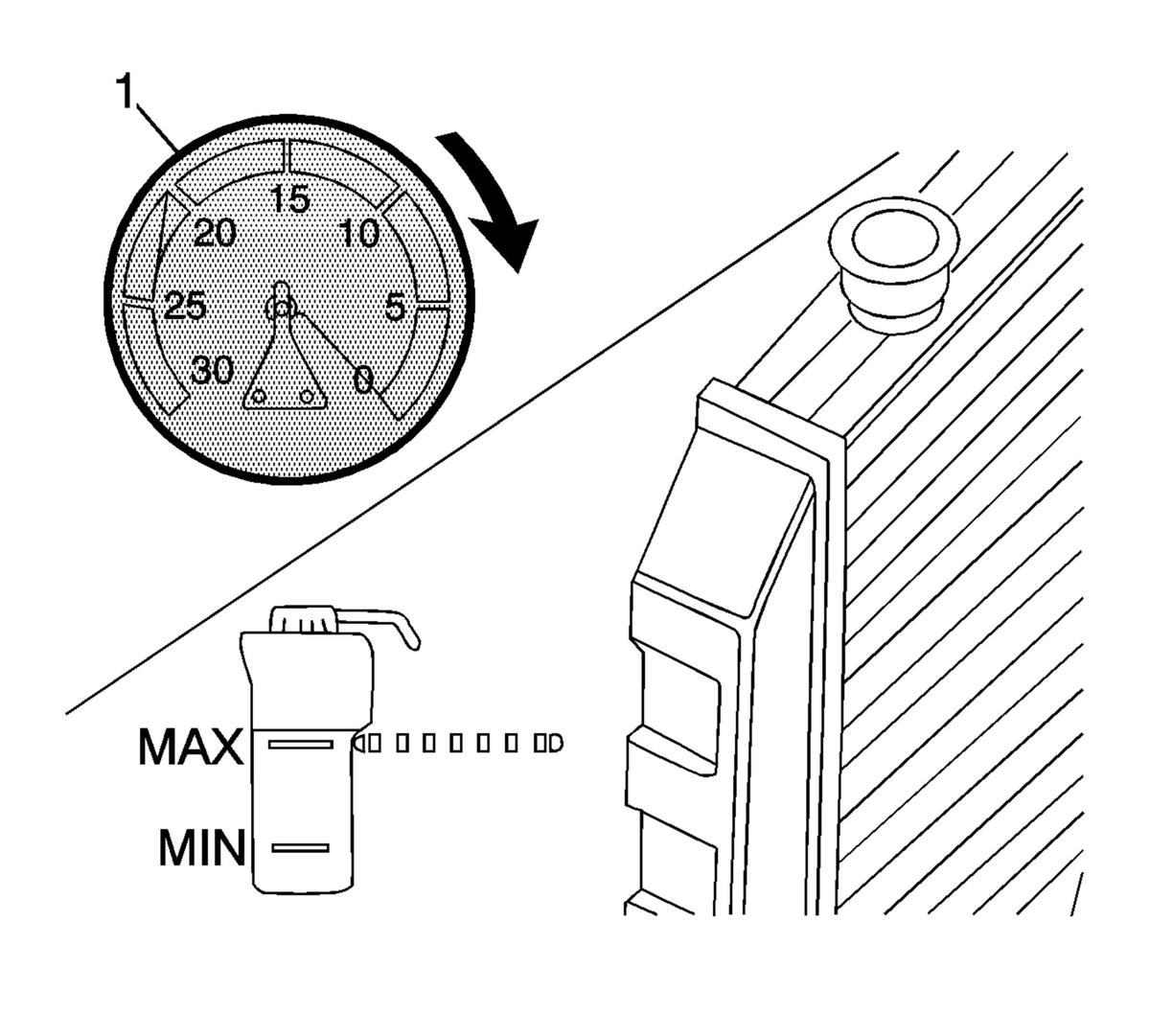

    Fig 11: Vacuum Gauge At Zero
    GM2846187Courtesy of GENERAL MOTORS COMPANY
  20. Detach the Vac-N-Fill cap from the GE-46143  adapter.
  21. Remove GE-46143  adapter from the surge tank fill neck.
  22. Add coolant to the system as necessary.
  23. Inspect the concentration of the coolant mixture using GE-26568  tester.
  24. Detach the vacuum hose form the vacuum gauge assembly.
    NOTE: After filling the cooling system, the extraction hose can be used to remove excess coolant to achieve the proper coolant level.
  25. Attach the extraction hose (1) to the vacuum hose (2).
    Fig 12: Vacuum Hose & Extraction Hose
    GM2857825Courtesy of GENERAL MOTORS COMPANY
  26. Open the valve (1) on the venturi assembly (2) to start a vacuum draw.
    Fig 13: Venturi Assembly & Valve
    GM2857827Courtesy of GENERAL MOTORS COMPANY
  27. Use the extraction hose (1) to draw out coolant to the proper level.
    Fig 14: Coolant Extraction Hose
    GM2857829Courtesy of GENERAL MOTORS COMPANY
  28. The vacuum tank has a drain valve on the bottom of the tank. Open the valve to drain coolant from the vacuum tank into a suitable container for disposal.
