Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Drain the drive motor generator power inverter module cooling system. Refer to Drive Motor Generator Power Inverter Module Cooling System Draining and Filling
  2. Front Bumper Fascia (4) - Remove Front Bumper Fascia Replacement
    Fig 1: Front Bumper Fascia
    GM4215588Courtesy of GENERAL MOTORS COMPANY
  3. Generator Control Module Coolant Pump Hose Clamp (1) - Disengage Hose Clamp Replacement Guidelines - Spring Type

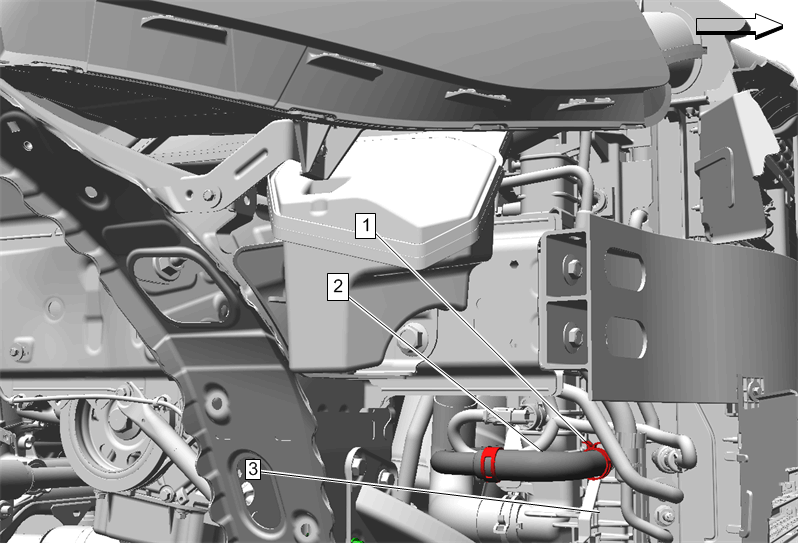

    Fig 2: Generator Control Module Coolant Pump Hose Clamp
    GM4322996Courtesy of GENERAL MOTORS COMPANY
  4. Drive Motor Generator Control Module Coolant Pump Hose (2) @ Auxiliary Radiator (3) - Remove
  5. Generator Control Module Coolant Pump Hose Clamp (1) - Disengage Hose Clamp Replacement Guidelines - Spring Type

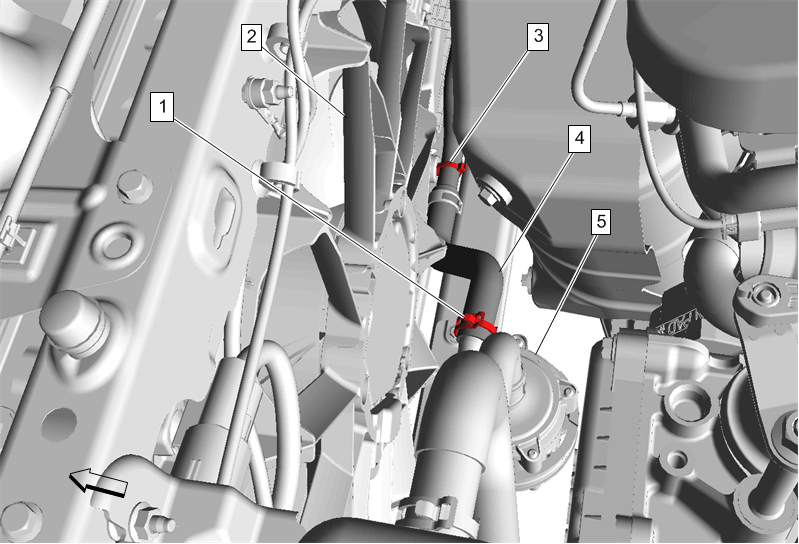

    Fig 3: Generator Control Module Coolant Pipe Clip
    GM4322997Courtesy of GENERAL MOTORS COMPANY
  6. Generator Control Module Coolant Pipe Clip (3) @ Engine Coolant Fan Shroud (2) Disengage
  7. Drive Motor Generator Control Module Coolant Pump Hose (4) @ Generator Control Module Coolant Pump (5) - Remove
  8. Drive Motor Generator Control Module Coolant Pump Hose (1) - Remove

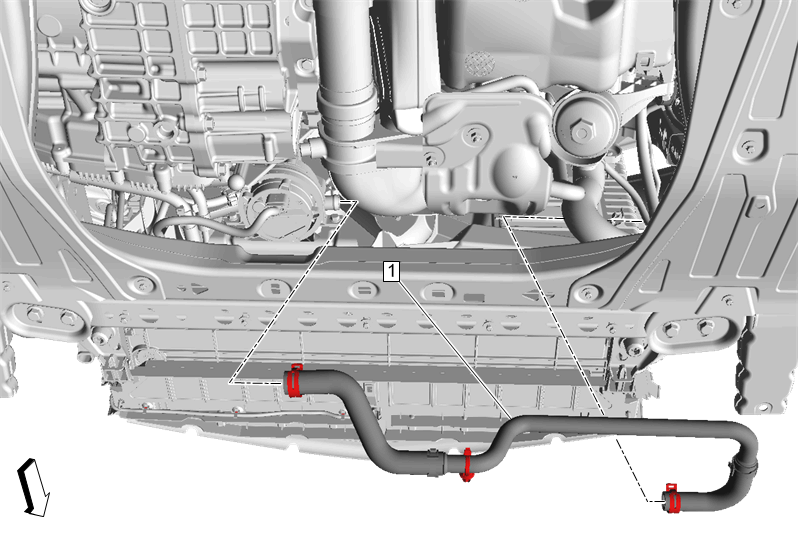

    Fig 4: Drive Motor Generator Control Module Coolant Pump Hose
    GM4322998Courtesy of GENERAL MOTORS COMPANY
