Drive Motor Battery Cooling Air Inlet Duct Replacement

WARNING: This page is about a different variant/trim than selected.

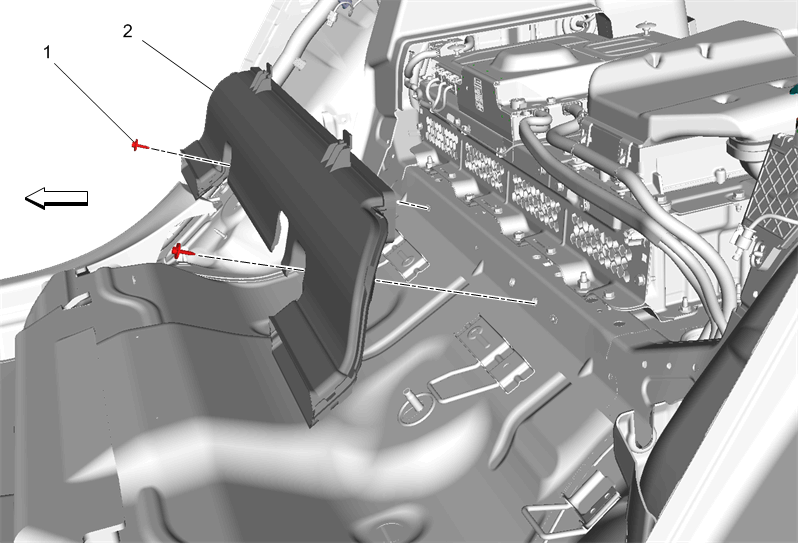

Fig 1: Drive Motor Battery Cooling Air Inlet Duct

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove left and right side drive motor battery cooling air supply ducts. Refer to Drive Motor Battery Cooling Air Inlet Duct Air Supply Duct Replacement (Left) Drive Motor Battery Cooling Air Inlet Duct Air Supply Duct Replacement (Right) Remove left and right side rear seat back cushions. Refer to Rear Seat Back Cushion Removal and Installation (40%)Rear Seat Back Cushion Removal and Installation (60%)
1	Drive Motor Battery Cooling Air Inlet Duct Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Drive Motor Battery Cooling Air Inlet Duct

Callout

Component Name

Preliminary Procedures

Drive Motor Battery Cooling Air Inlet Duct Bolt [2x]

CAUTION: Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Drive Motor Battery Cooling Air Inlet Duct
