Torque Converter Fluid Seal Installation

WARNING: This page is about a different variant/trim than selected.

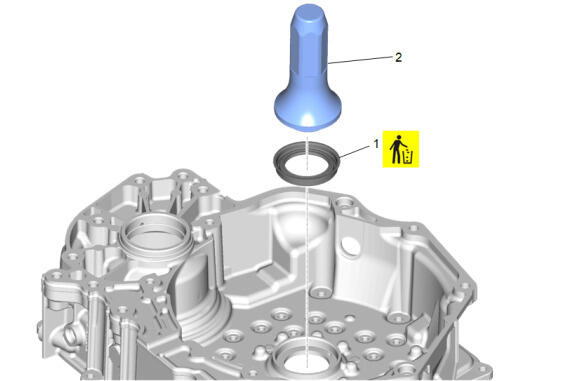

Fig 1: Torque Converter Fluid Seal
GM4381742Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Torque Converter Fluid Seal
NOTE: Install a NEW seal. Do NOT reuse the old seal.

Special Tools
DT-47791-B  Seal Installer
Equivalent regional tools:Special Tools .
