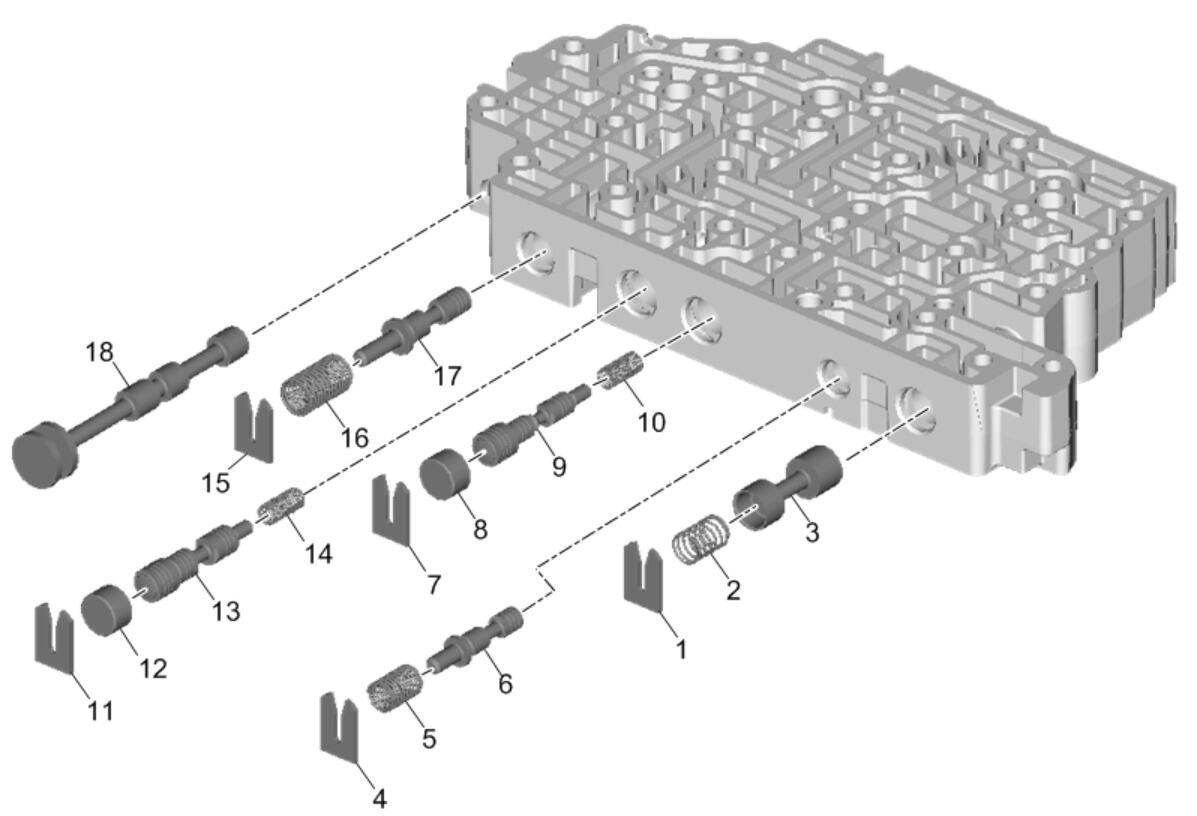

Control Valve Body (2 of 2)
WARNING: This page is about a different variant/trim than selected.
Control Valve Body (2 of 2)
| Callout | Component Name |
|---|---|
|
WARNING:
Valve springs can be tightly compressed. Use care when removing retainers and plugs. Personal injury could result.
CAUTION:
After cleaning the transmission components, allow to air dry. Do not use cloth or paper towels in order to dry any transmission components. Lint from the towels can cause component failure.
CAUTION:
Do not reuse cleaning solvents. Previously used solvents may deposit sediment which may damage the component. Preliminary Procedure Clean and inspect all valve components and the valve body. The control valve body assembly is only replaceable as an assembly. |
|
| 1 | Oil Level Control Valve Spring Retainer |
| 2 | Automatic Transmission Fluid Level Control Valve Spring |
| 3 | Automatic Transmission Fluid Level Control Valve |
| 4 | Feed Limit Valve Spring Retainer |
| 5 | Feed Limit Valve Spring |
| 6 | Feed Limit Valve |
| 7 | 4th Clutch Regulator Valve Bore Plug Retainer |
| 8 | 4th Clutch Regulator Valve Bore Plug |
| 9 | 4th Clutch Regulator Valve |
| 10 | 3-8 Clutch Regulator Valve Spring |
| 11 | 3-8 Clutch Regulator Valve Bore Plug Retainer |
| 12 | 3-8 Clutch Regulator Valve Bore Plug |
| 13 | 3-8 Clutch Regulator Valve |
| 14 | 3-8 Clutch Regulator Valve Spring |
| 15 | Actuator Feed Limit Valve Spring Retainer |
| 16 | Actuator Feed Limit Valve Spring |
| 17 | Actuator Feed Limit Valve |
| 18 | Manual Valve |
