Control Valve Body (1 of 2)
WARNING: This page is about a different variant/trim than selected.
Control Valve Body (1 of 2)

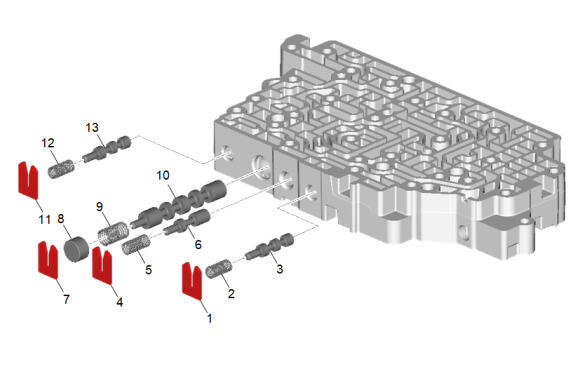

| Callout | Component Name |
|---|---|
|
WARNING:
Valve springs can be tightly compressed. Use care when removing retainers and plugs. Personal injury could result.
CAUTION:
After cleaning the transmission components, allow to air dry. Do not use cloth or paper towels in order to dry any transmission components. Lint from the towels can cause component failure.
CAUTION:
Do not reuse cleaning solvents. Previously used solvents may deposit sediment which may damage the component. Preliminary Procedure Clean and inspect all valve components and the valve body. The control valve body assembly is only replaceable as an assembly. |
|
| 1 | 5-7-Reverse Clutch Boost Valve Spring Retainer |
| 2 | 1-2-3-4-5-6 Clutch Boost Valve Spring |
| 3 | 1-2-3-4-5-6 Clutch Boost Valve |
| 4 | Latch Valve Spring Retainer |
| 5 | Latch Valve Spring |
| 6 | Latch Valve |
| 7 | Clutch Selector Valve Bore Plug Retainer |
| 8 | Clutch Selector Valve Bore Plug |
| 9 | Clutch Selector Valve Spring |
| 10 | Clutch Selector Valve |
| 11 | 1-2-3-4-5-6 Clutch Boost Valve Spring Retainer |
| 12 | 5-7-Reverse Clutch Boost Valve Spring |
| 13 | 5-7-Reverse Clutch Boost Valve |
