Control Valve Solenoid Body Wiring Harness Removal
WARNING: This page is about a different variant/trim than selected.
Control Valve Solenoid Body Wiring Harness Removal

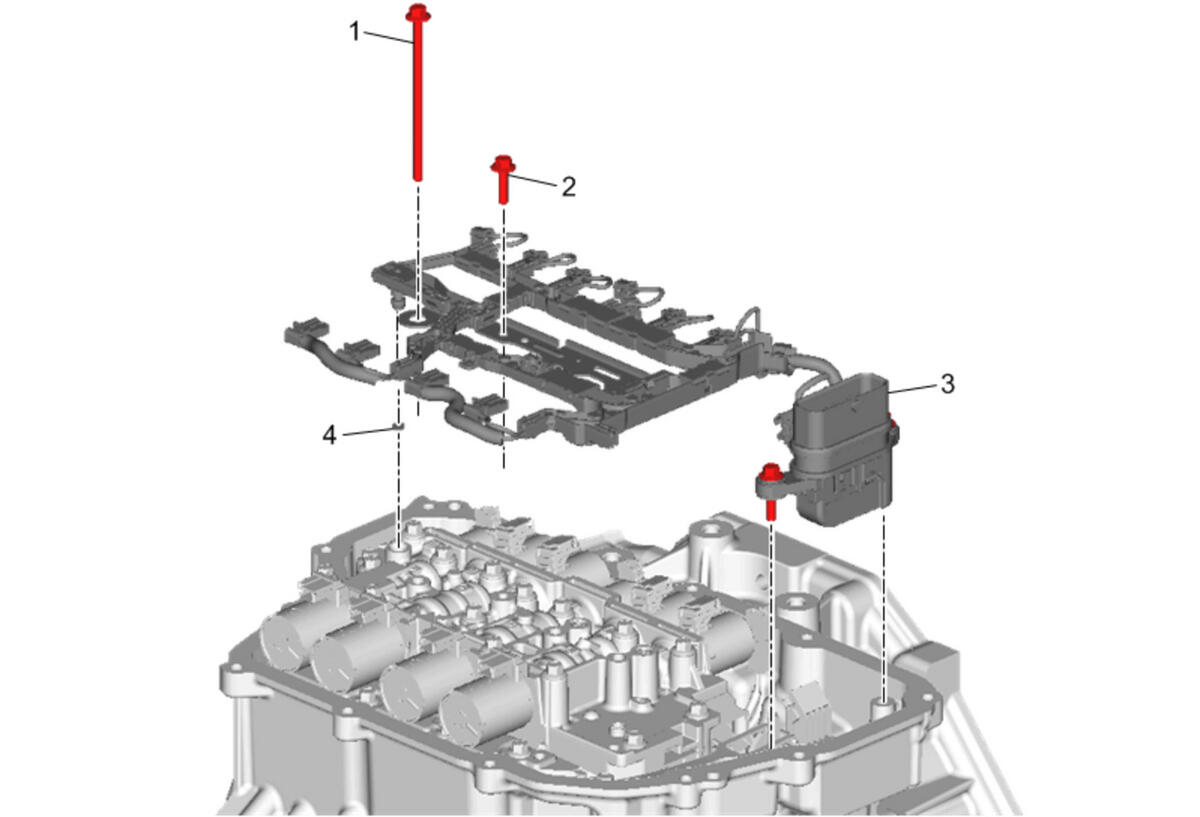

| Callout | Component Name |
|---|---|
| 1 | Control Valve Body Bolt [3x] |
| 2 | Control Valve Solenoid Body Bolt |
| 3 | Automatic Transmission Wiring Harness Procedure Ensure you disconnect all the connectors from the valve body.
NOTE:
The bolts are captured with harness.
|
| 4 | Automatic Transmission Wiring Harness Seal
NOTE:
Remove and DISCARD the seal.
|
