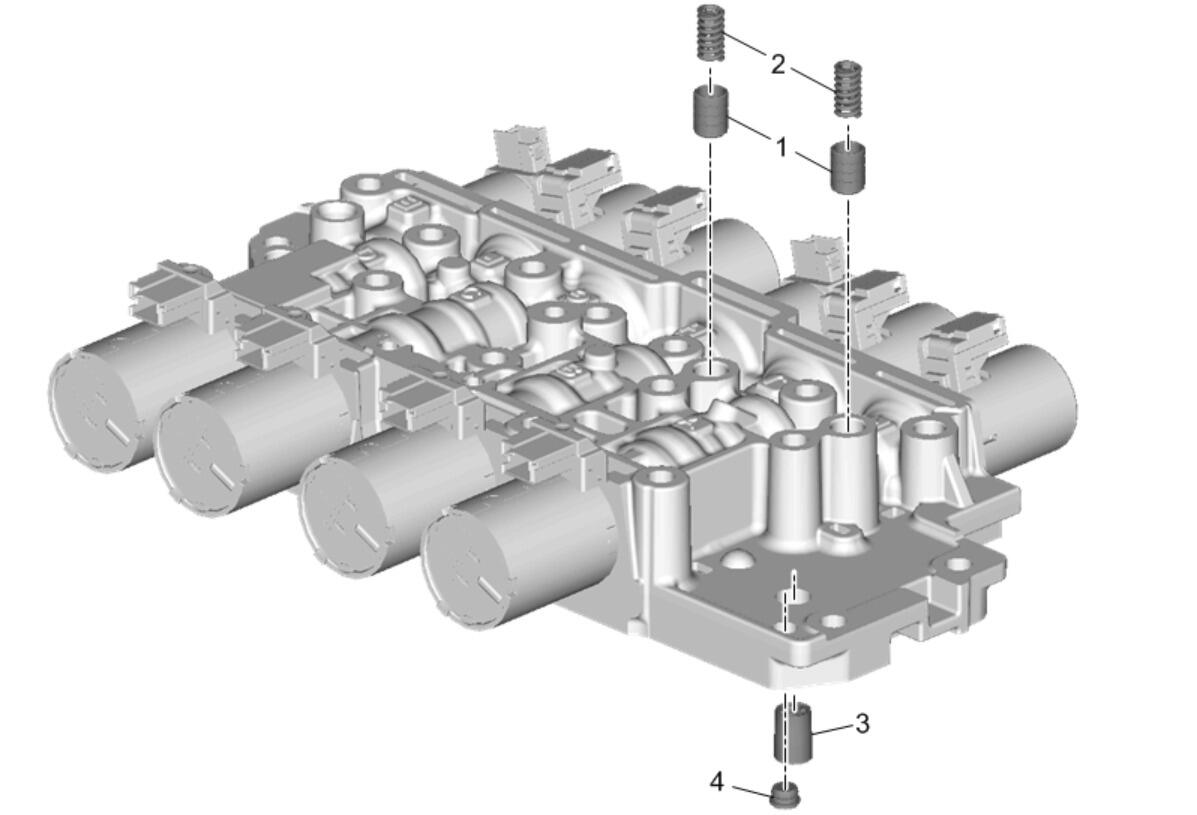

Control Valve Solenoid Body Assemble
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY Control Valve Solenoid Body Assemble
| Callout |
Component Name |
| 1 |
Variable Feed Solenoid Clutch Accumulator Piston [2x] |
| 2 |
Variable Feed Solenoid Clutch Accumulator Piston Spring [2x] |
| 3 |
Control Valve Channel Plate Ball Check Valve Spring |
| 4 |
Variable High and 2-3-4 Clutch Housing Valve |
