Automatic Transmission Input Shaft Speed Sensor Reluctor Wheel, 3-5-Reverse Clutch Piston and Spring and Seals Disassemble
WARNING: This page is about a different variant/trim than selected.

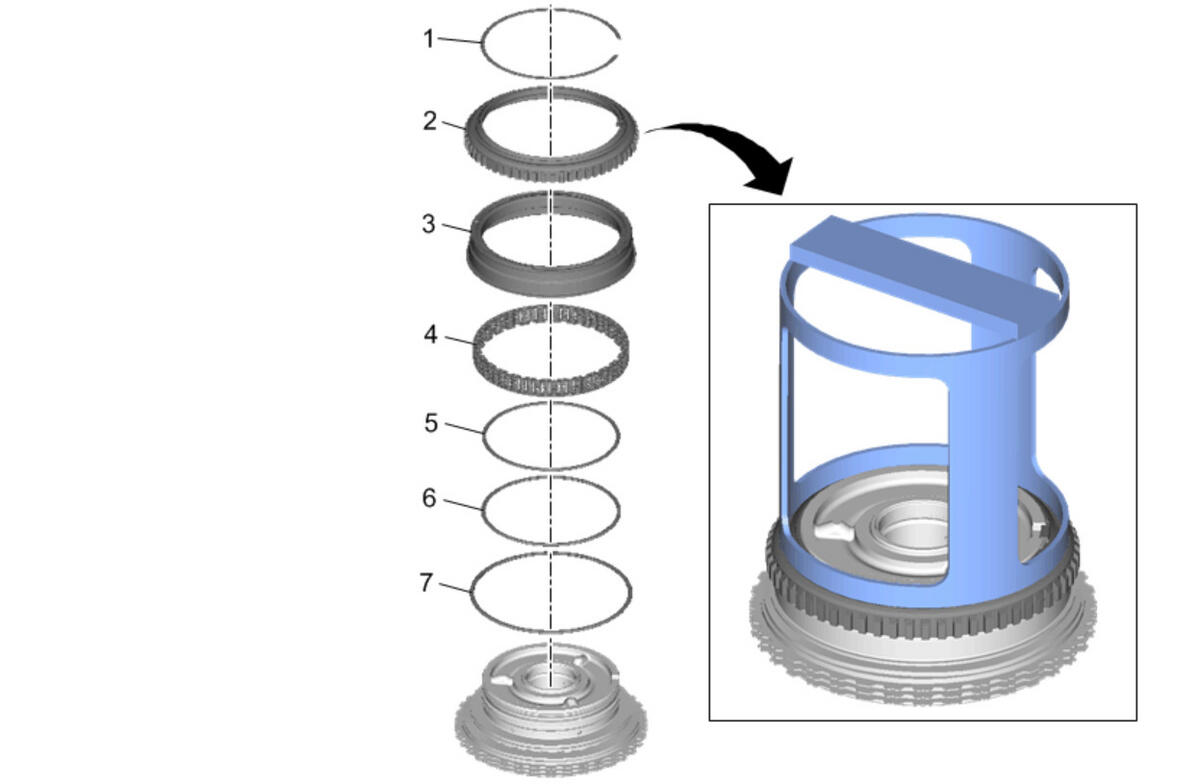

Fig 1: Automatic Transmission Input Shaft Speed Sensor Reluctor Wheel, 3-5-Reverse Clutch Piston and Spring and Seals
Automatic Transmission Input Shaft Speed Sensor Reluctor Wheel, 3-5-Reverse Clutch Piston and Spring and Seals Disassemble
| Callout | Component Name |
|---|---|
| 1 | Automatic Transmission Input Shaft Speed Sensor Reluctor Ring Retaining Ring |
| 2 | Automatic Transmission Input Shaft Speed Sensor Reluctor Wheel Special Tools DT-47694 Piston Spring Compressor Equivalent regional tools:Special Tools |
| 3 | 3-5-Reverse Clutch Piston |
| 4 | 5-7-Reverse Piston Retainer Spring |
| 5 | 3-5-Reverse Clutch Piston Dam Seal
NOTE:
Remove and DISCARD the seal.
|
| 6 | 3-5-Reverse Clutch Piston Inner Seal
NOTE:
Remove and DISCARD the seal.
|
| 7 | 3-5-Reverse Clutch Piston Inner Seal
NOTE:
Remove and DISCARD the seal.
|
