5-7-Reverse Clutch Plates Disassemble
WARNING: This page is about a different variant/trim than selected.

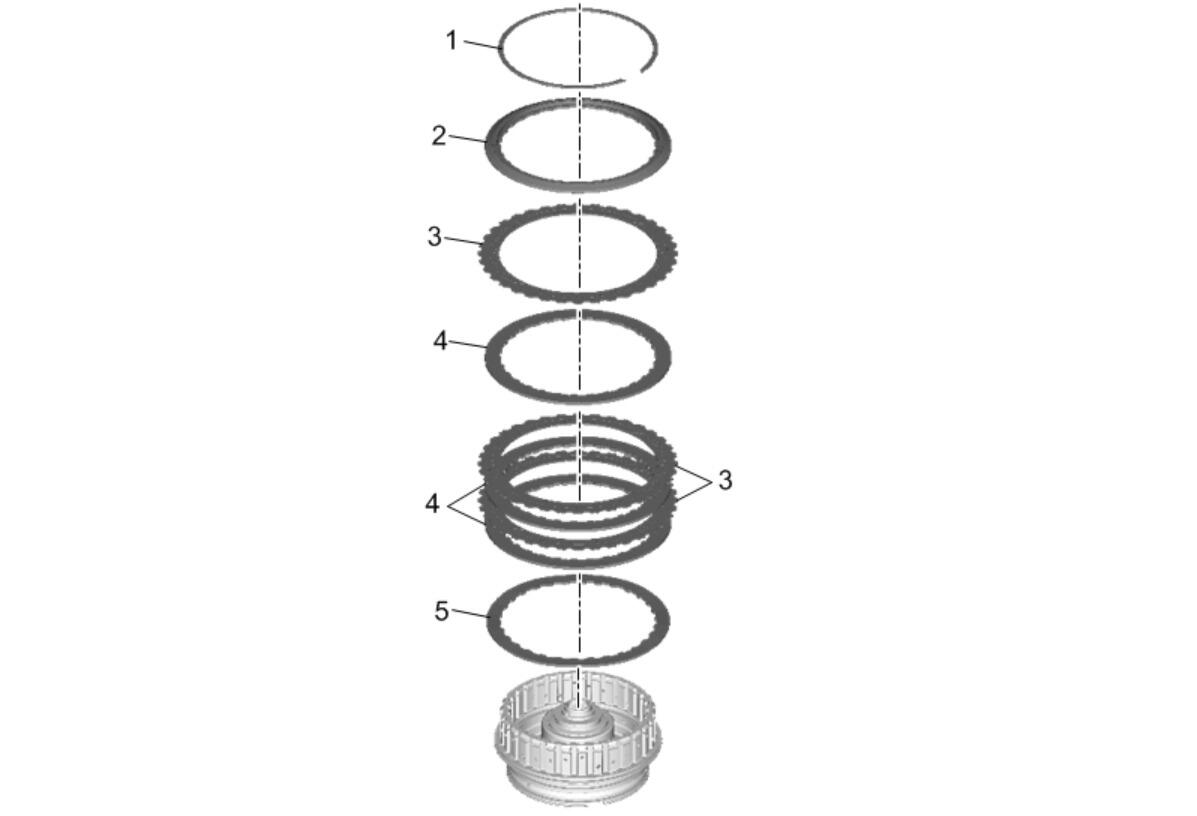

Courtesy of GENERAL MOTORS COMPANY 5-7-Reverse Clutch Plates Disassemble
| Callout |
Component Name |
| 1 |
5-7-Reverse Clutch Backing Plate Retaining Ring |
| 2 |
5-7-Reverse Clutch Backing Plate |
| 3 |
5-7-Reverse Clutch Plate - Friction |
| 4 |
5-7-Reverse Clutch Plate |
| 5 |
5-7-Reverse Clutch Apply Plate |
