Automatic Transmission Input Shaft Speed Sensor Reluctor Wheel, 3-5-Reverse Clutch Piston and Spring and Seals Assemble
WARNING: This page is about a different variant/trim than selected.

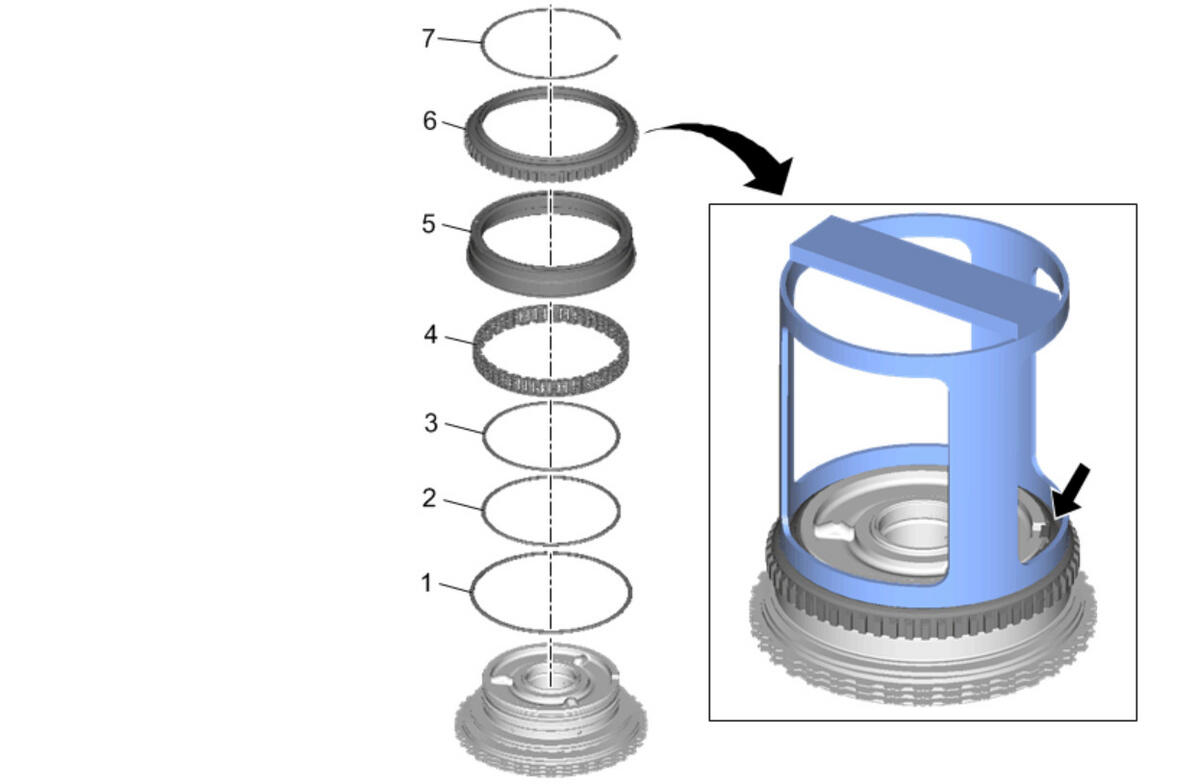

Fig 1: Automatic Transmission Input Shaft Speed Sensor Reluctor Wheel, 3-5-Reverse Clutch Piston and Spring and Seals
Automatic Transmission Input Shaft Speed Sensor Reluctor Wheel, 3-5-Reverse Clutch Piston and Spring and Seals Assemble
| Callout | Component Name |
|---|---|
| 1 | 3-5-Reverse Clutch Piston Inner Seal
NOTE:
Install a NEW seal. Do NOT reuse the old seal.
|
| 2 | 3-5-Reverse Clutch Piston Inner Seal
NOTE:
Install a NEW seal. Do NOT reuse the old seal.
|
| 3 | 3-5-Reverse Clutch Piston Dam Seal
NOTE:
Install a NEW seal. Do NOT reuse the old seal.
|
| 4 | 5-7-Reverse Piston Retainer Spring |
| 5 | 3-5-Reverse Clutch Piston |
| 6 | Automatic Transmission Input Shaft Speed Sensor Reluctor Wheel |
| 7 | Automatic Transmission Input Shaft Speed Sensor Reluctor Ring Retaining Ring Special Tools DT-47694 Piston Spring Compressor Equivalent regional tools:Special Tools |
