3-8 Clutch Piston Installation
WARNING: This page is about a different variant/trim than selected.

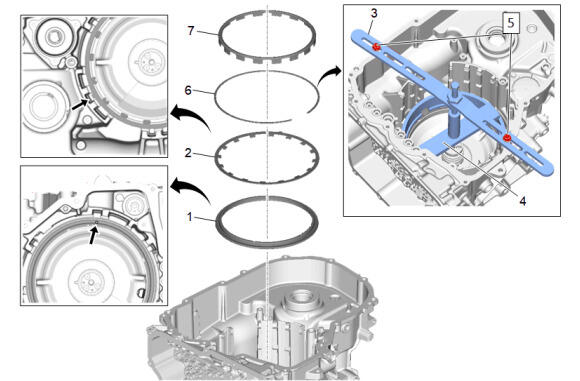

| Callout | Component Name |
|---|---|
| 1 | 3-8 Clutch Piston |
| 2 | 3-8 Clutch Spring
NOTE:
Ensure spring is centered in housing.
|
| 3 | 3-8 Clutch Spring Retaining Ring
NOTE:
Ensure the retaining ring is engaged fully.
Special Tools
Equivalent regional tools:Special Tools |
| 4 | 3-8 Clutch Apply Ring |
