2-9 Clutch Plate Installation

WARNING: This page is about a different variant/trim than selected.

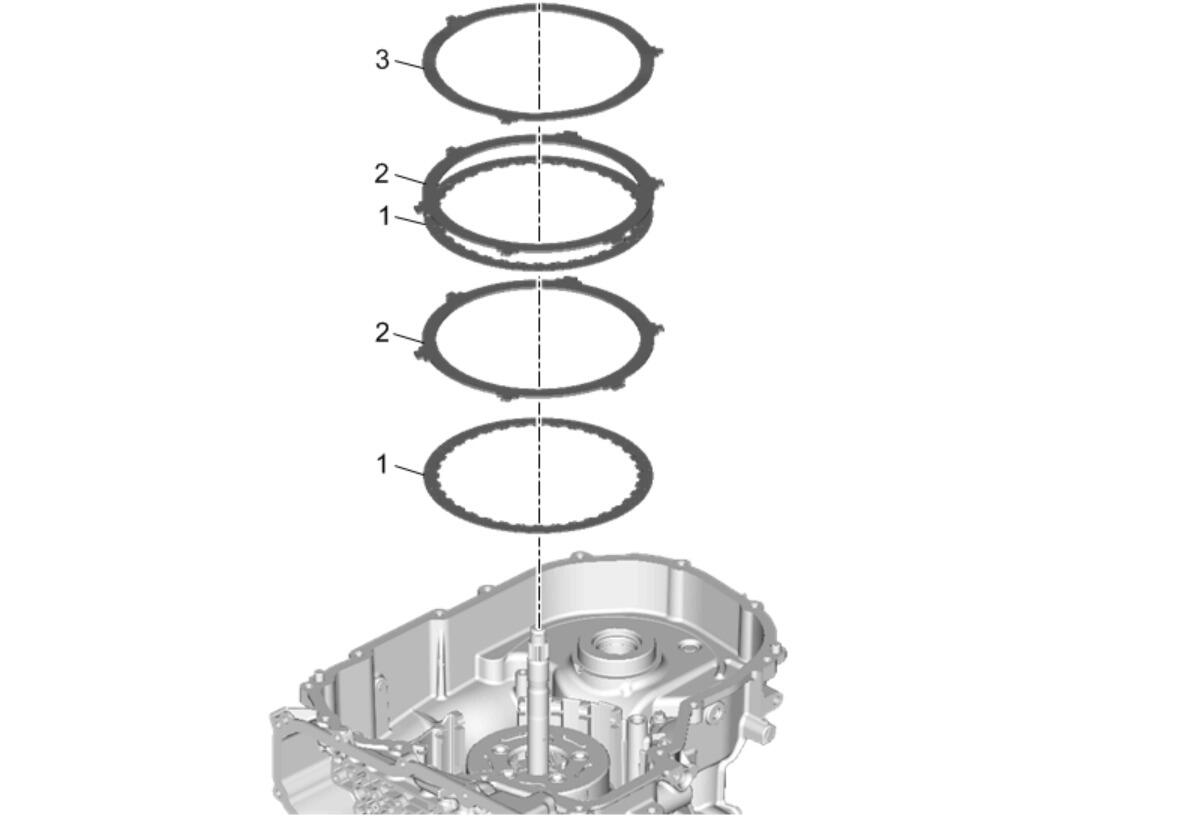

Fig 1: 2-9 Clutch Plate
GM4382331Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 2-9 Clutch Plate - Friction
2 2-9 Clutch Plate
3 2-9 Clutch Plate - Wave
