Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Using a suitable jack stand, support the rear of the transmission.
  3. Remove and DISCARD the rear transmission mount bracket to rear mount through bolt (1).

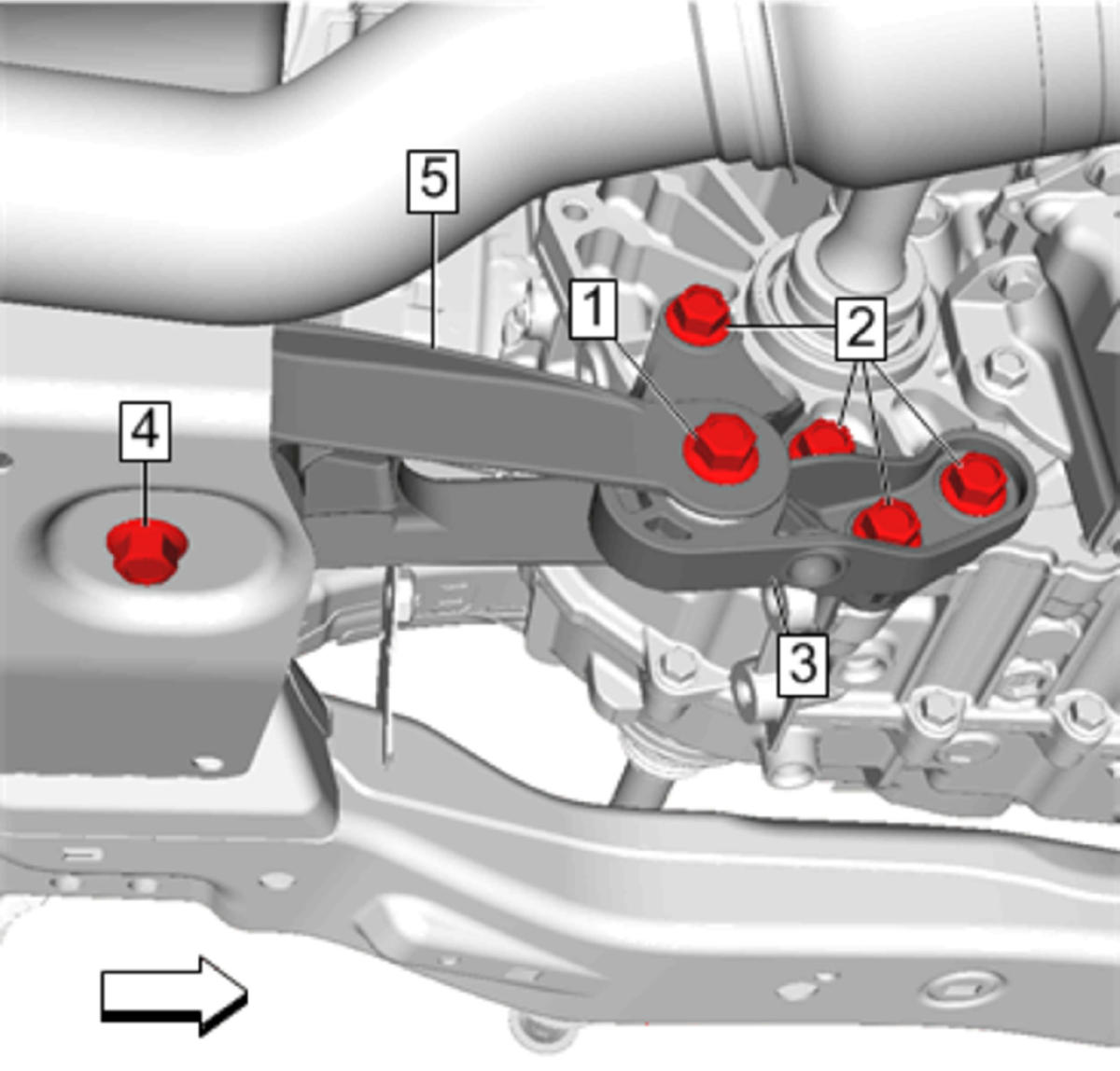

    Fig 1: Rear Mount Strut
    GM4487992Courtesy of GENERAL MOTORS COMPANY
  4. Remove and DISCARD the 4 rear transmission mount bracket to transmission bolts (2).
  5. Remove the rear transmission mount bracket (3).
