Transmission Fluid Filler Tube Plug Replacement

WARNING: This page is about a different variant/trim than selected.

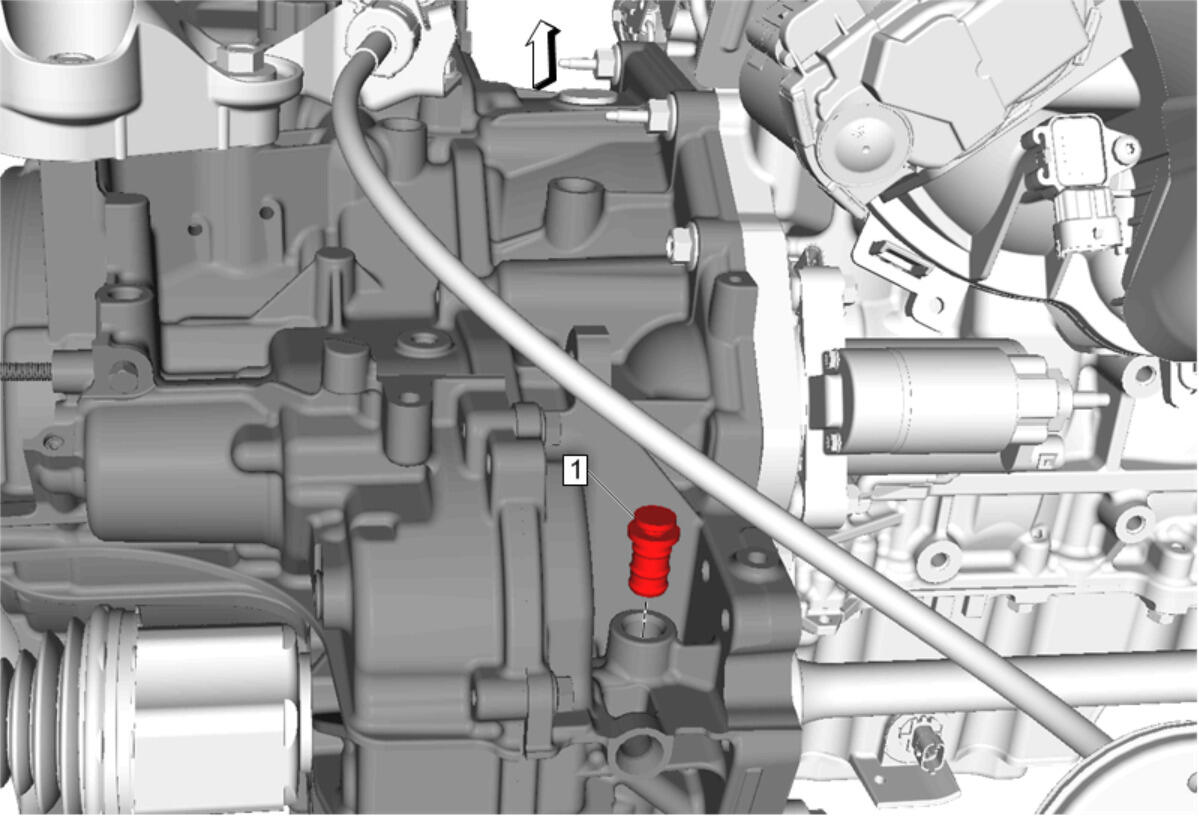

Fig 1: Transmission Fluid Filler Tube Plug
GM4487489Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Fluid Filler Tube Plug
