Transmission Control Module Bracket Replacement
WARNING: This page is about a different variant/trim than selected.

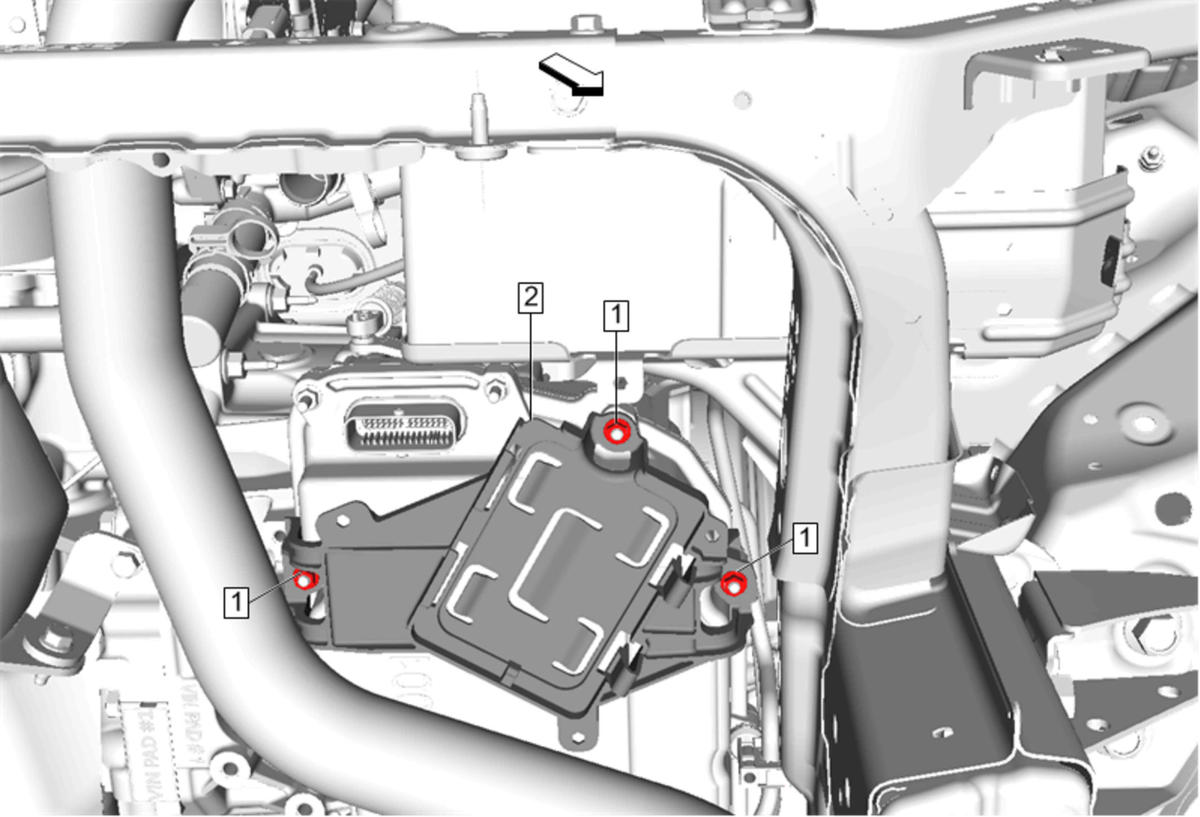

| Callout | Component Name |
|---|---|
| Preliminary Procedure Transmission Control Module Replacement |
|
| 1 | Transmission Control Module Bracket Nut [3x]
CAUTION:
Refer to Fastener Caution
. Tighten 9 N.m (80 lb in) |
| 2 | Transmission Control Module Bracket |
