Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the automatic transmission range selector lever (2).

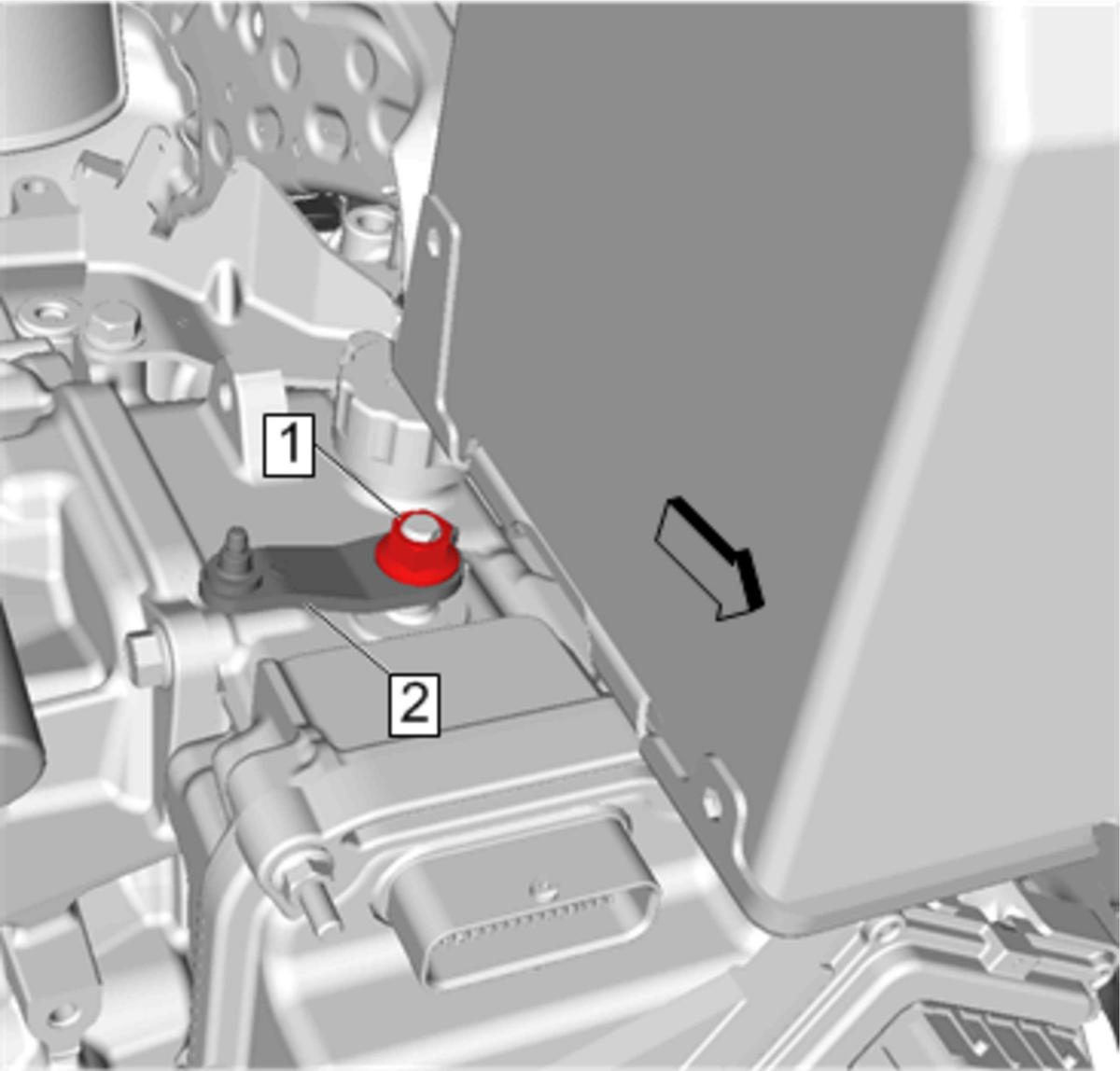

    Fig 1: Automatic Transmission Range Selector Lever And Nut
    GM4486771Courtesy of GENERAL MOTORS COMPANY
    WARNING: Hold the transmission range selector lever while removing or installing the lever retaining nut. Failure to hold the lever can cause damage to the transmission internal park system components which could allow the vehicle to roll when placed in the park position.
  2. Install the automatic transmission range selector lever nut (1) and tighten to 30 N.m (22 lb ft).
    CAUTION: Refer to Fastener Caution .
  3. Install the automatic transmission range selector lever cable (2) to the cable bracket.
    Fig 2: Automatic Transmission Range Selector Lever Cable
    GM4486520Courtesy of GENERAL MOTORS COMPANY
  4. Connect the automatic transmission range selector lever cable terminal (1) to the transmission manual shift lever pin.
    WARNING: After installing the transmission range selector shift cable, pull up and push down on ALL connections to verify that the connections are fully seated and properly engaged. Failure to perform this task can result in the vehicle not being able to shift into PARK causing potential vehicle damage and bodily injury.
  5. Check the range selector cable adjustment. Refer to Range Selector Lever Cable Adjustment
  6. Install the battery tray. Refer to Battery Tray Replacement
