Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Set the park brake and chock the wheels.
  2. Remove the battery tray. Refer to Battery Tray Replacement
  3. Disconnect the automatic transmission range selector lever cable end (1) from the automatic transmission range selector range selector lever.
    Fig 1: Automatic Transmission Range Selector Lever Cable
    GM4486520Courtesy of GENERAL MOTORS COMPANY
  4. Disconnect the automatic transmission range selector cable (2) from the automatic transmission range selector cable lever bracket.
  5. Remove the automatic transmission range selector cable lever cable bracket bolts (1).

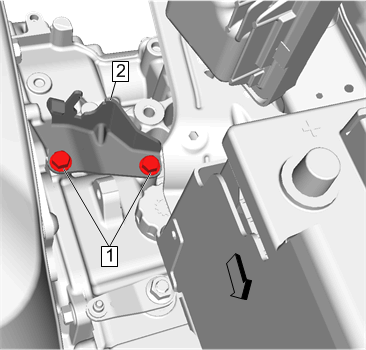

    Fig 2: Automatic Transmission Range Selector Cable Lever Cable Bracket Bolts
    GM4486728Courtesy of GENERAL MOTORS COMPANY
  6. Remove the automatic transmission range selector cable lever bracket (2).
