Case and Associated Parts
WARNING: This page is about a different variant/trim than selected.

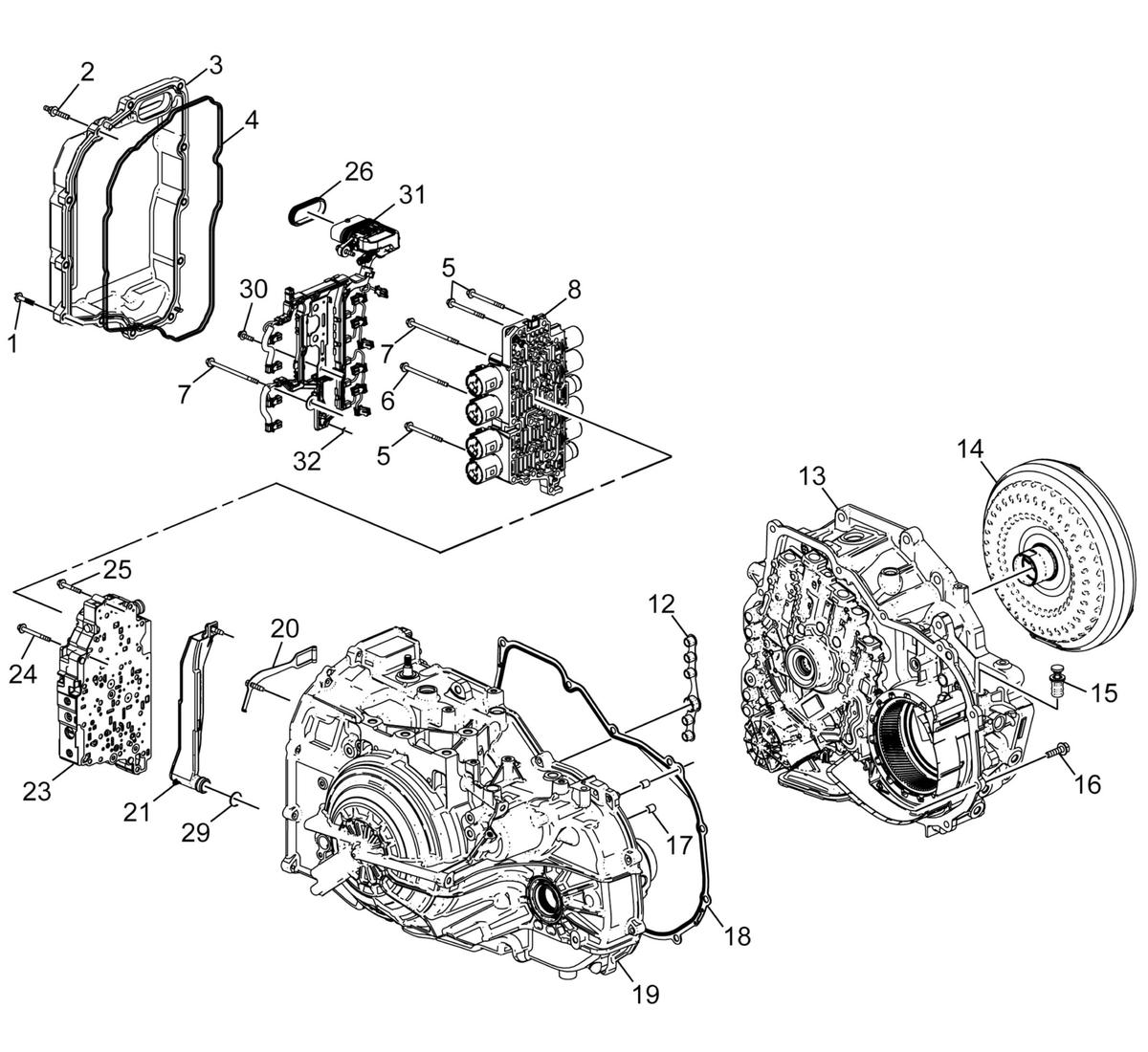

| Callout | Component Name |
|---|---|
| 1 | Valve Body Cover Bolt |
| 2 | Control Valve Body Cover Stud |
| 3 | Control Valve Body Cover |
| 4 | Control Valve Body Cover Gasket |
| 5 | Control Valve Body Bolt |
| 6 | Control Valve Body Bolt |
| 7 | Control Valve Body Bolt |
| 8 | Control Valve Solenoid Body |
| 12 | Automatic Transmission Fluid Pump Seal |
| 13 | Torque Converter and Differential Housing |
| 14 | Torque Converter |
| 15 | Transmission Fluid Filler Tube Plug |
| 16 | Torque Converter and Differential Housing Bolt |
| 17 | Transmission Case Locating Pin |
| 18 | Torque Converter Housing Gasket |
| 19 | Automatic Transmission Case |
| 20 | Manual Shift Detent Lever Spring |
| 21 | Fluid Transfer Pipe |
| 23 | Control Valve Body |
| 24 | Control Valve Body Bolt |
| 25 | Control Valve Body Bolt |
| 26 | Body Side Wiring Harness Opening Seal |
| 29 | Fluid Transfer Pipe Seal |
| 30 | Control Valve Solenoid Body Bolt |
| 31 | Automatic Transmission Wiring Harness |
| 32 | Automatic Transmission Fluid Temperature Sensor Seal |
