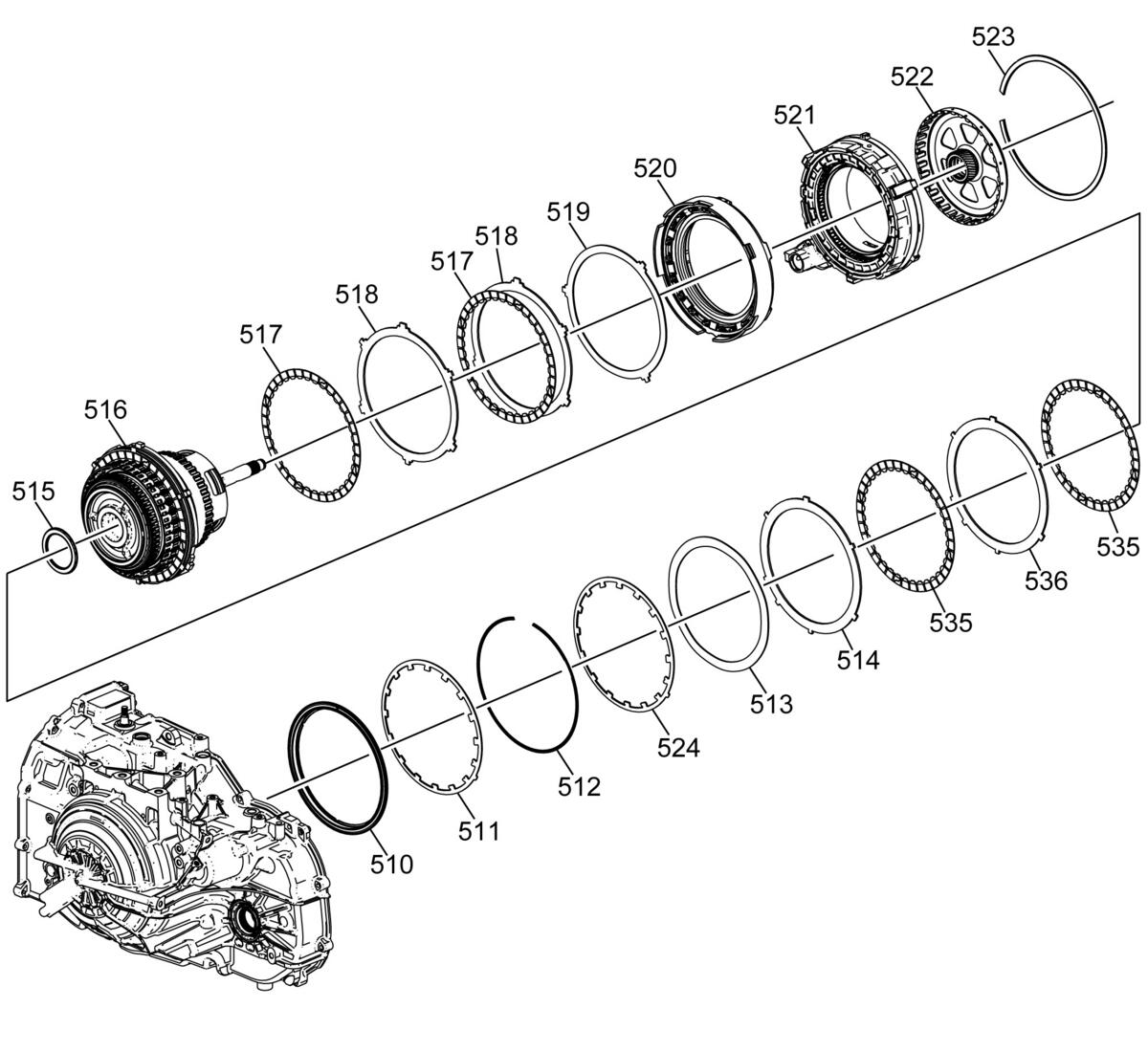

2-9 and 3-8 Clutch Plate Assemblies
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 510 | 3-8 Clutch Piston |
| 511 | 3-8 Clutch Spring |
| 512 | 3-8 Clutch Spring Retaining Ring |
| 513 | 3-8 Clutch Plate - Wave |
| 514 | 3-8 Clutch Plate |
| 535 | 3-8 Clutch Plate - Friction |
| 536 | 3-8 Clutch Plate |
| 515 | 6-7-8-9 and 5-7-Reverse Clutch Housing Thrust Bearing |
| 516 | 5-7-Reverse and 6-7-8-9 Clutch Housing |
| 517 | 2-9 Clutch Plate - Friction |
| 518 | 2-9 Clutch Plate |
| 519 | 2-9 Clutch Waved Plate |
| 520 | 2-9 and 4 Clutch Piston Housing Assembly |
| 521 | 1-Reverse and 1-2-3-4-5-6 Clutch Piston Housing Assembly |
| 522 | Output Sun Gear |
| 523 | 1-2-3-4-5-6 Clutch Piston Housing Return Ring |
| 524 | 3-8 Clutch Apply Ring |
