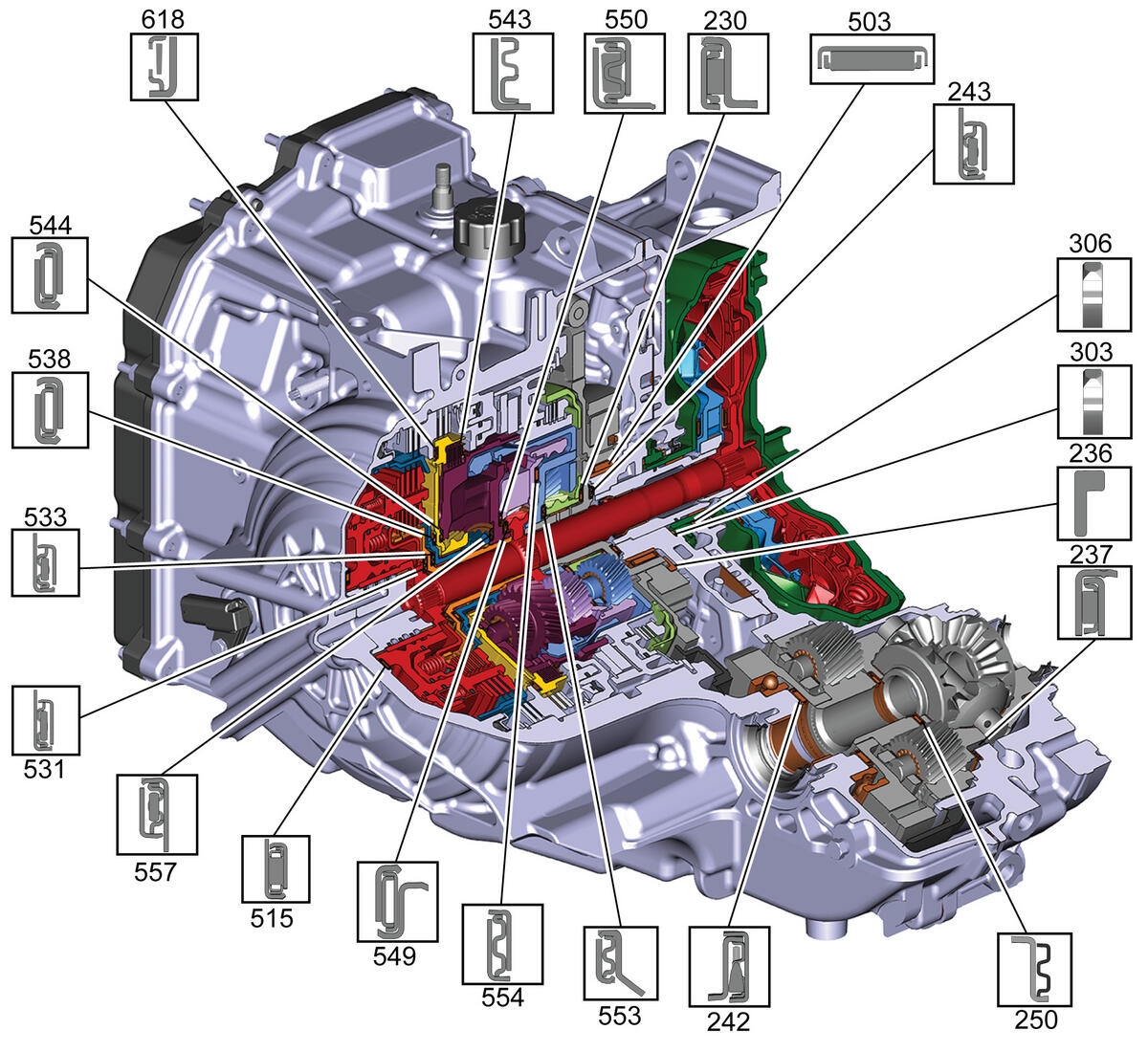

Bushing, Bearing and Washer Locations
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 230 | Output Sun Gear Thrust Bearing |
| 236 | Drive Sprocket Thrust Washer |
| 237 | Front Differential Carrier Bearing |
| 242 | Driven Sprocket Bearing |
| 303 | Driven Sprocket Thrust Washer |
| 306 | Driven Sprocket Thrust Washer |
| 500 | Reaction Sun Gear Thrust Bearing |
| 503 | Output Carrier Hub Bearing |
| 515 | 6-7-8-9 and 5-7-Reverse Clutch Housing Thrust Bearing |
| 531 | Reaction Carrier Hub Bearing |
| 533 | Reaction Carrier Sun Gear Thrust Bearing |
| 538 | Overdrive Sun Gear Thrust Bearing |
| 543 | 4th Clutch Thrust Bearing |
| 544 | Overdrive Sun Gear Thrust Bearing |
| 549 | Input Carrier Thrust Bearing |
| 550 | Input Sun Gear Thrust Bearing |
| 553 | Input Sun Gear Thrust Bearing |
| 554 | Output Carrier Thrust Bearing |
| 618 | 4th Gear Bearing |
