Power, Ground, Serial Data, MIL, Fluid Temperature and Tap Up/Tap Down Switch

WARNING: This page is about a different variant/trim than selected.

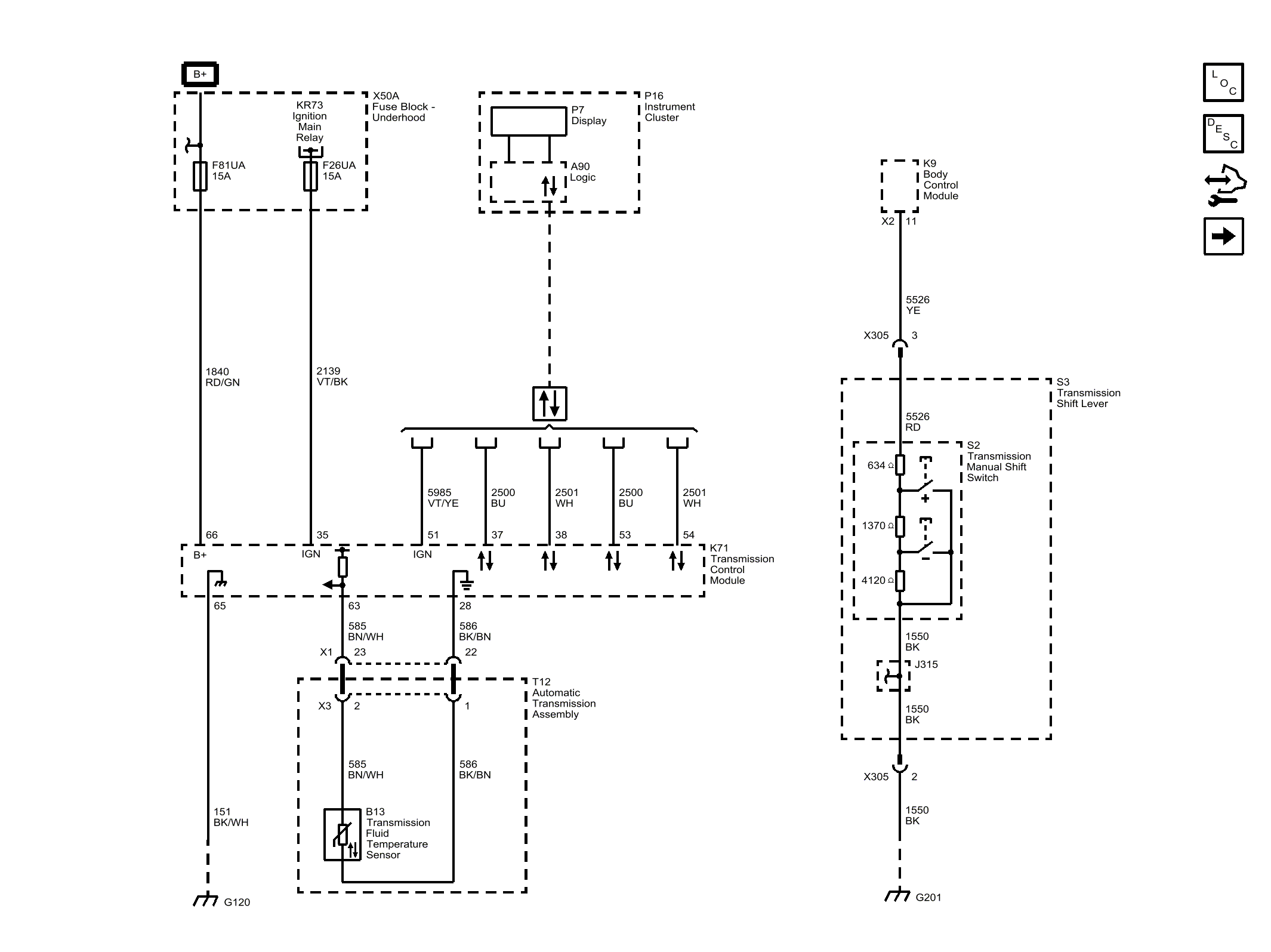

Fig 1: Power, Ground, Serial Data, MIL, Fluid Temperature and Tap Up/Tap Down Switch
GM4502243Courtesy of GENERAL MOTORS COMPANY
