Section 23 (Automatic Transmission - 9T50 (M3E) - Schematic Wiring Diagrams)
>>
Schematic Wiring Diagrams
>>
Automatic Transmission Controls Wiring Schematics (M3E)
>>
Control Solenoid Valve (1 of 2)
Control Solenoid Valve (1 of 2)
WARNING:
This page is about a different variant/trim than selected.

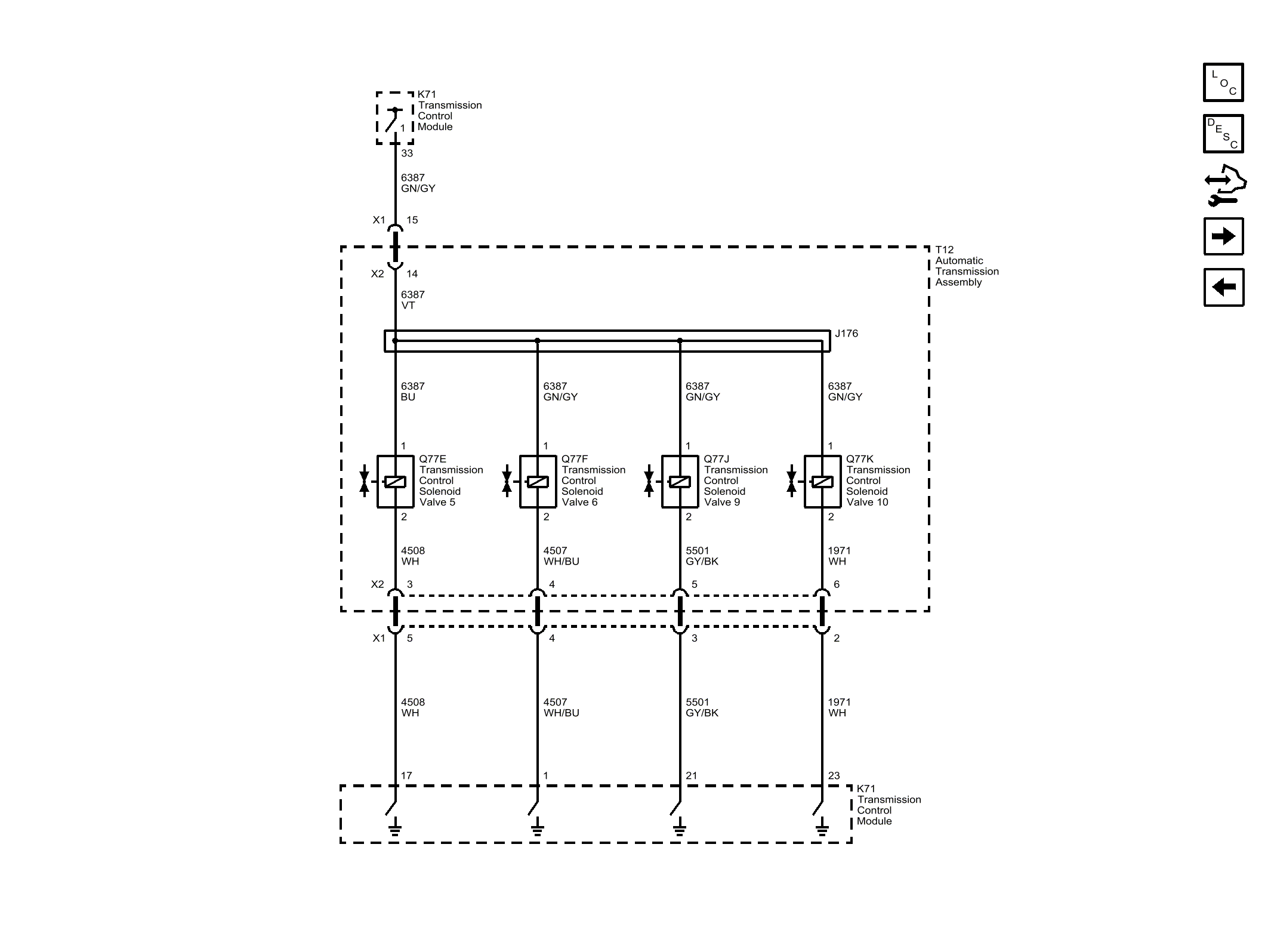

Fig 1: Control Solenoid Valve (1 of 2)
Courtesy of GENERAL MOTORS COMPANY
