Fuel Pump Cover Replacement

WARNING: This page is about a different variant/trim than selected.

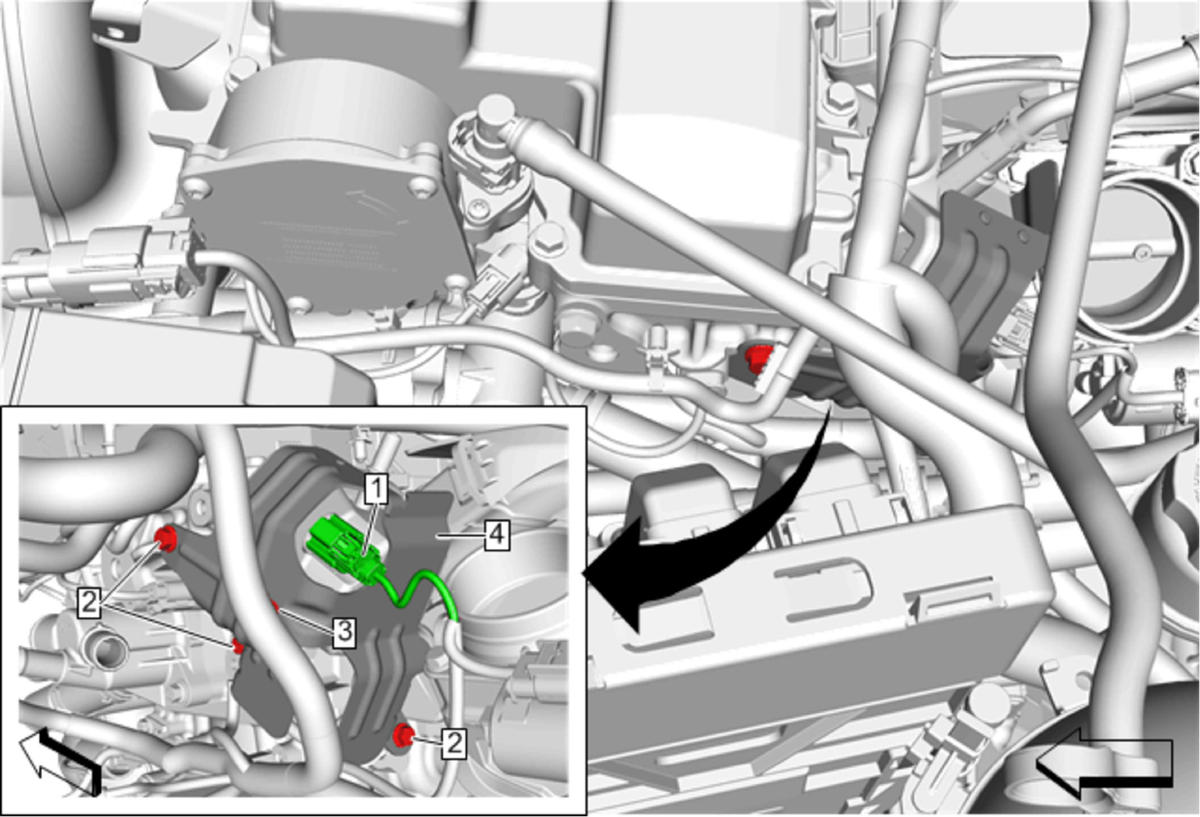

Fig 1: Fuel Pump Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Charge Air Cooler Outlet Air Tube Replacement Intake Manifold Cover Replacement
1	Electrical Connector Procedure Disconnect the electrical connector.
2	Fuel Pump Cover Fastener [3x] CAUTION: Refer to Fastener Caution . Procedure 10 N.m (89 lb in)
3	Engine Wiring Harness Retainer
4	Fuel Pump Cover
