Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Fuel Feed Pipe (1) @ Retainer (2) - Install [5x]

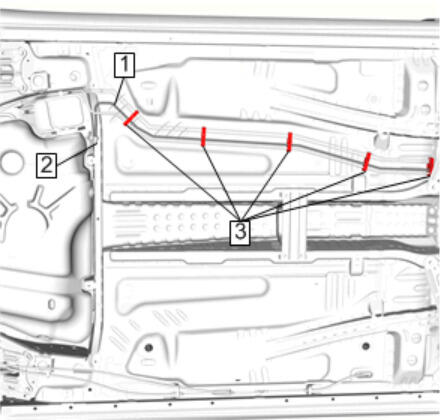

    Fig 1: Fuel Feed Pipe Retainers
    GM4244450Courtesy of GENERAL MOTORS COMPANY
  2. Fuel Feed Pipe (1) @ Fuel Feed Pipe (2) - Connect Plastic Collar Quick Connect Fitting Service
  3. Fuel Feed Pipe (1) @ Retainer (2) - Install [5x]

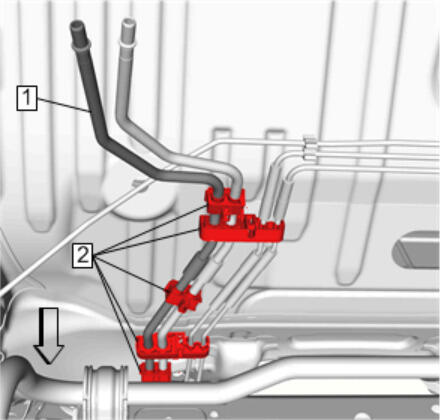

    Fig 2: Fuel Feed Pipe
    GM4244594Courtesy of GENERAL MOTORS COMPANY
  4. Brake and Fuel Pipe Shield (1) - Install

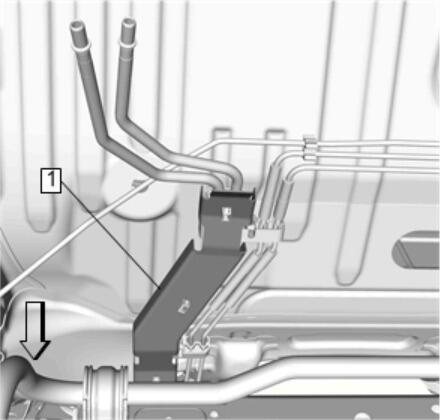

    Fig 3: Brake and Fuel Pipe Shield
    GM4244586Courtesy of GENERAL MOTORS COMPANY
  5. Fuel Feed Front Pipe Replacement  - Connect
