Fuel Feed Pipe Replacement (At Tank)

WARNING: This page is about a different variant/trim than selected.

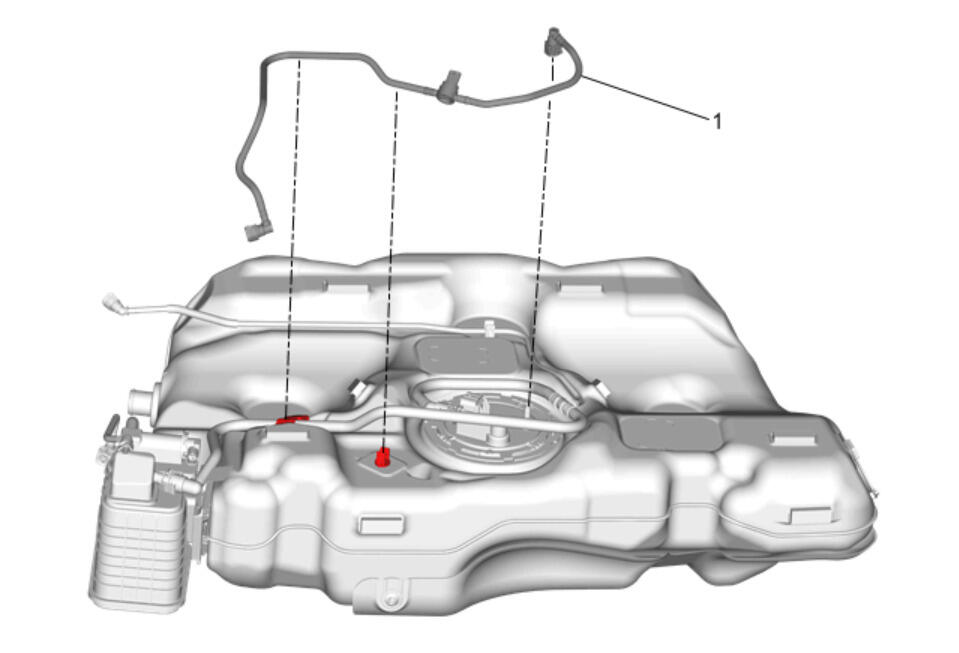

Fig 1: Fuel Pressure Sensor - Fuel Feed Pipe

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Gasoline/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedure Fuel Tank Replacement
1	Fuel Feed Pipe NOTE: Fuel pressure sensor is serviced as part of fuel feed pipe assembly. Procedure Disconnect the electrical connector. Disconnect the fuel feed pipe from the fuel tank fuel pump module and remove from retainers. Refer to Plastic Collar Quick Connect Fitting Service

Callout

Component Name

WARNING: Refer to Gasoline/Gasoline Vapors Warning .

WARNING: Refer to Safety Glasses Warning .

Preliminary Procedure Fuel Tank Replacement

Fuel Feed Pipe

NOTE: Fuel pressure sensor is serviced as part of fuel feed pipe assembly.

Procedure

Disconnect the electrical connector.
Disconnect the fuel feed pipe from the fuel tank fuel pump module and remove from retainers. Refer to Plastic Collar Quick Connect Fitting Service
