Evaporative Emission Canister Solenoid Replacement

WARNING: This page is about a different variant/trim than selected.

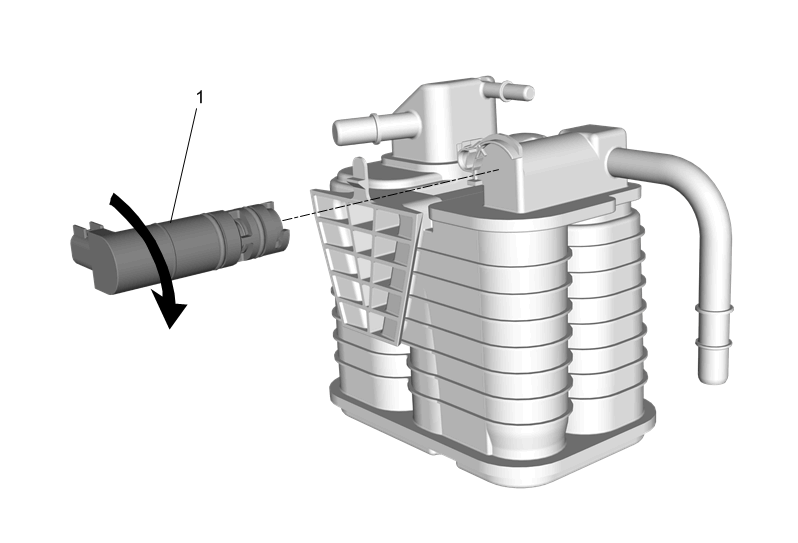

Fig 1: Evaporative Emission Canister Solenoid
GM4557195Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING: Refer to Gasoline/Gasoline Vapors Warning .
WARNING: Refer to Safety Glasses Warning .
Preliminary Procedure Evaporative Emission Canister Replacement
1 Evaporative Emission Canister Solenoid

Procedure

  1. Disconnect the electrical connector.
  2. Rotate solenoid clockwise 1/4 turn to remove.
