Crankshaft Position Sensor Replacement

WARNING: This page is about a different variant/trim than selected.

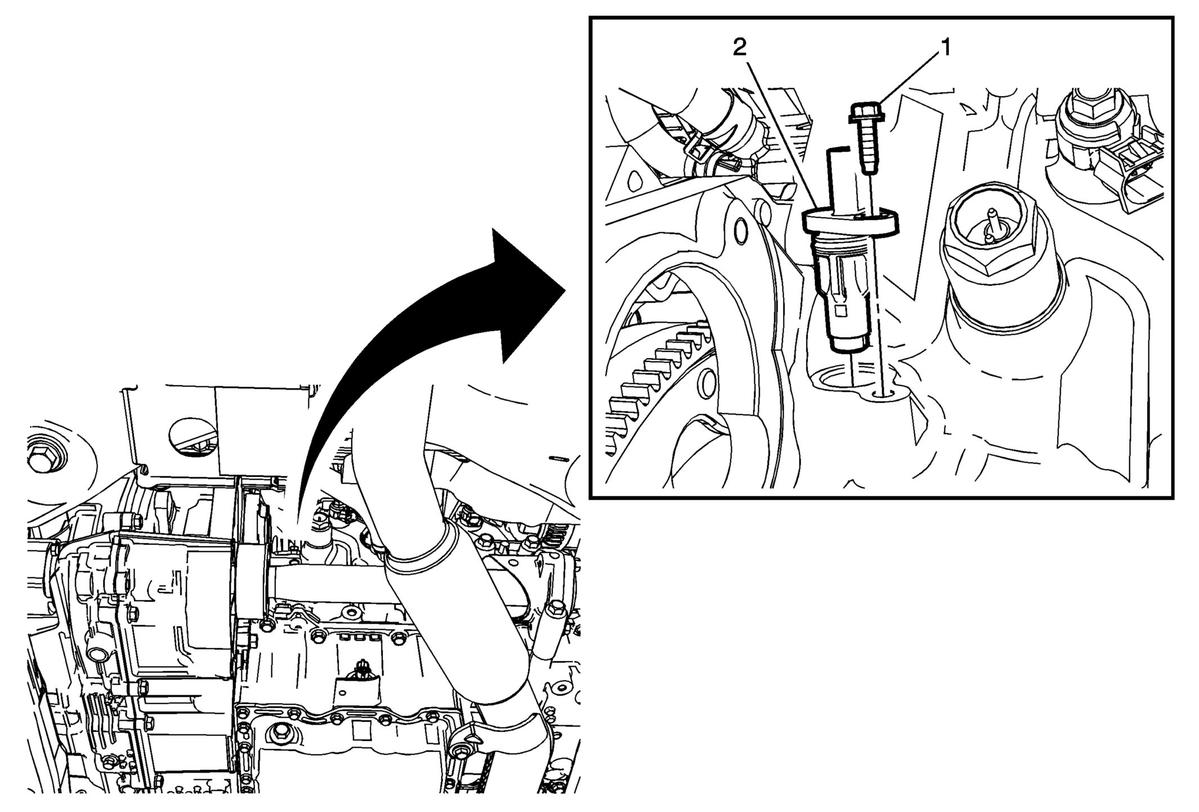

Fig 1: Crankshaft Position Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Starter Replacement (LTG)
1	Crankshaft Position Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Crankshaft Position Sensor Procedure Disconnect the electrical connector. If NOT replacing the component, install a NEW seal. If installing a NEW crankshaft position sensor, perform the crankshaft position system variation learn procedure. Refer to Crankshaft Position Variation Learn

Callout

Component Name

Crankshaft Position Sensor Fastener

CAUTION: Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)

Crankshaft Position Sensor

Procedure

Disconnect the electrical connector.
If NOT replacing the component, install a NEW seal.
If installing a NEW crankshaft position sensor, perform the crankshaft position system variation learn procedure. Refer to Crankshaft Position Variation Learn
