Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Front Bumper Fascia Replacement - Remove
  2. Charge Air Cooler Inlet Air Tube Bolt (1) - Remove [2x]

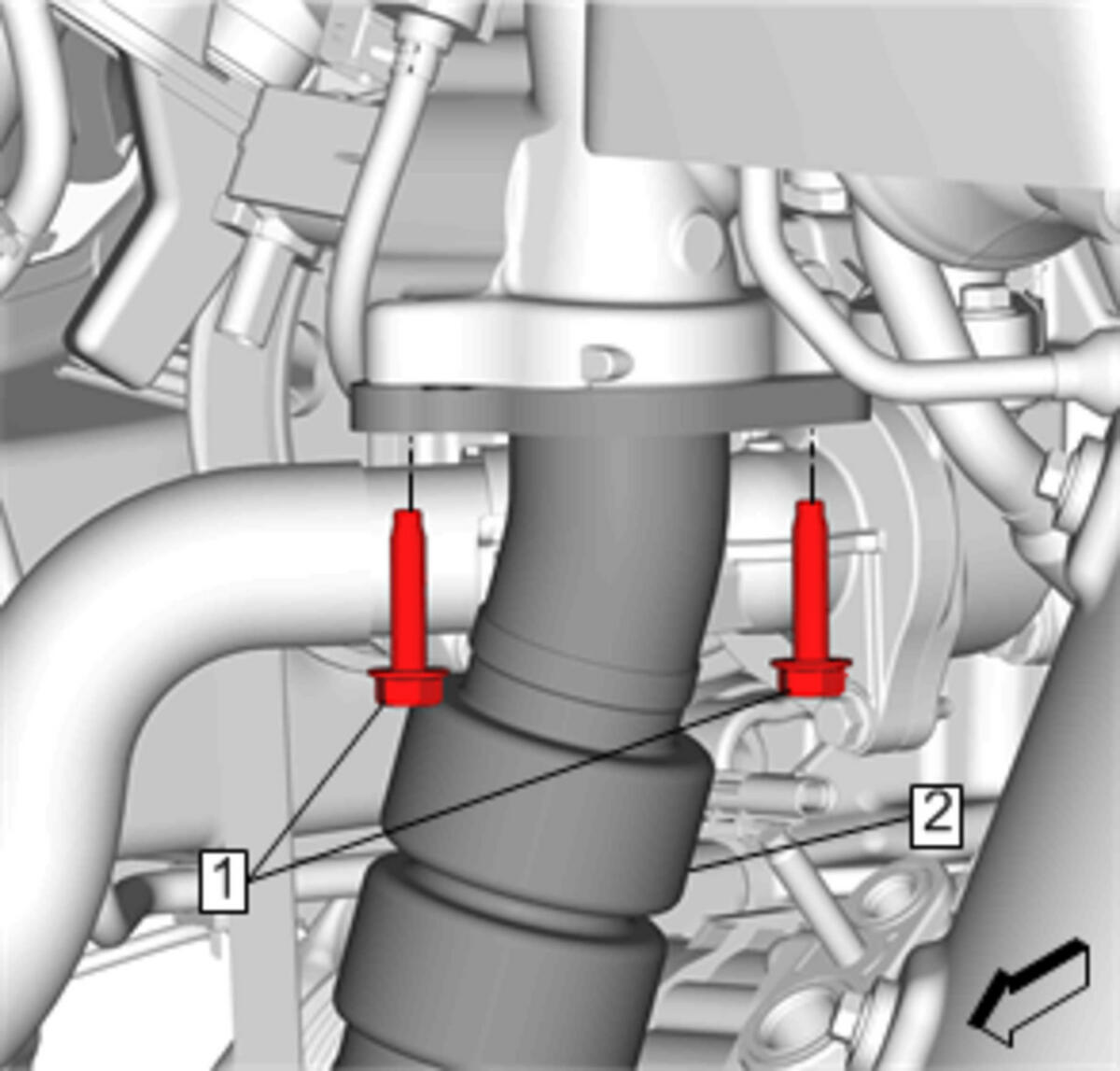

    Fig 1: Charge Air Cooler Inlet Air Tube Bolt
    GM4233084Courtesy of GENERAL MOTORS COMPANY
  3. Charge Air Cooler Inlet Air Tube (2) - Remove
  4. Retainer Spring (1) - Release

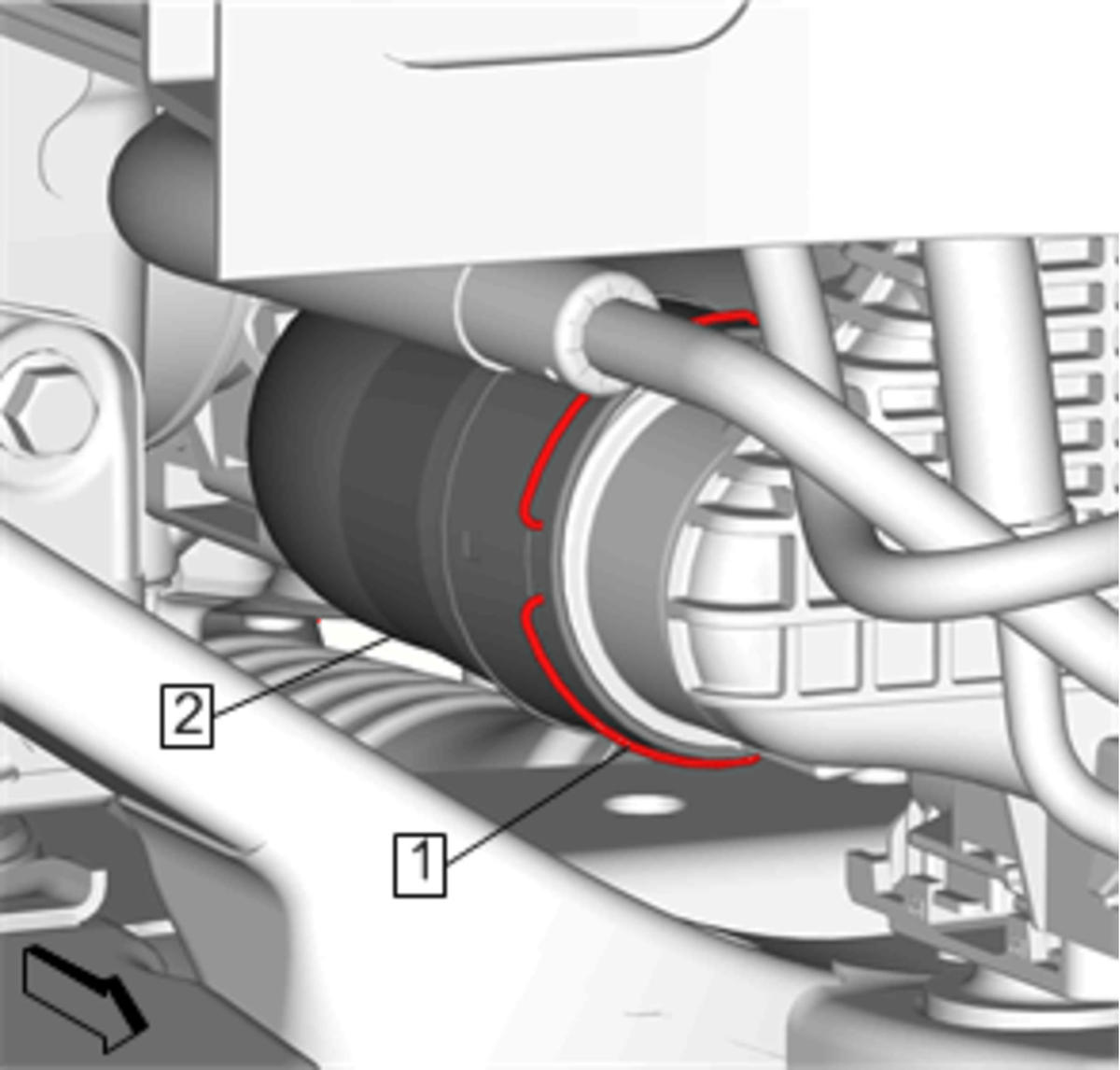

    Fig 2: Retainer Spring
    GM4232980Courtesy of GENERAL MOTORS COMPANY
  5. Charge Air Cooler Inlet Air Tube (2) - Remove
