Camshaft Position Sensor Replacement - Exhaust

WARNING: This page is about a different variant/trim than selected.

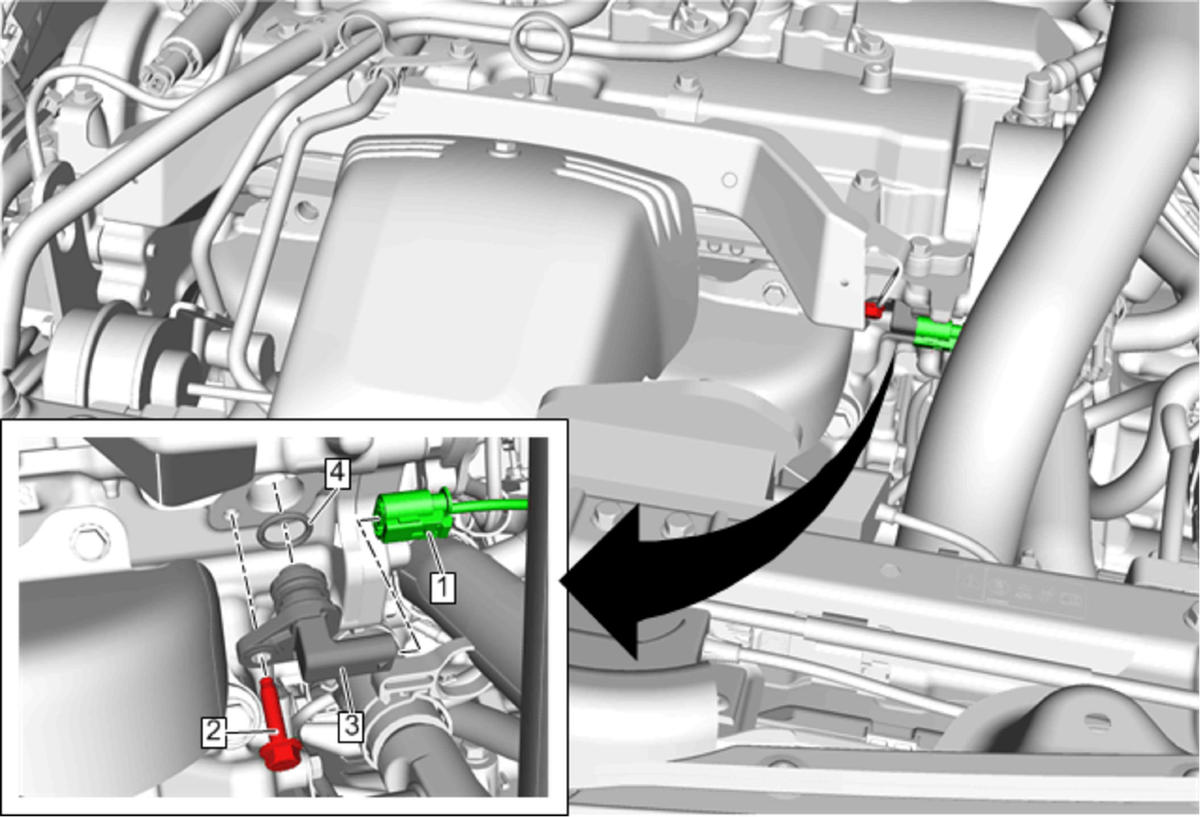

Fig 1: Camshaft Position Sensor - Exhaust

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Intake Manifold Cover Replacement
1	Electrical Connector Procedure Disconnect the electrical connector.
2	Camshaft Position Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
3	Camshaft Position Sensor
4	Camshaft Position Sensor Seal Procedure Install a NEW camshaft position sensor seal. Lubricate the NEW camshaft position sensor seal with clean engine oil.
