Accelerator Pedal with Position Sensor Assembly Replacement

WARNING: This page is about a different variant/trim than selected.

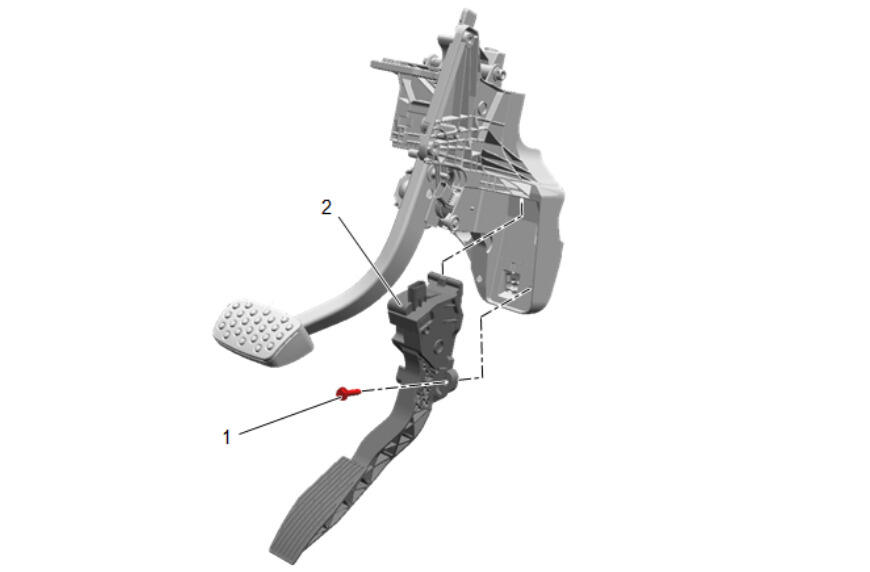

Fig 1: Accelerator Pedal with Position Sensor Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Accelerator Pedal Position Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten 3.5 N.m (31 lb in)
2	Accelerator Pedal Position Sensor Procedure Disconnect the electrical connector.
