Lower Oil Pan Replacement

WARNING: This page is about a different variant/trim than selected.

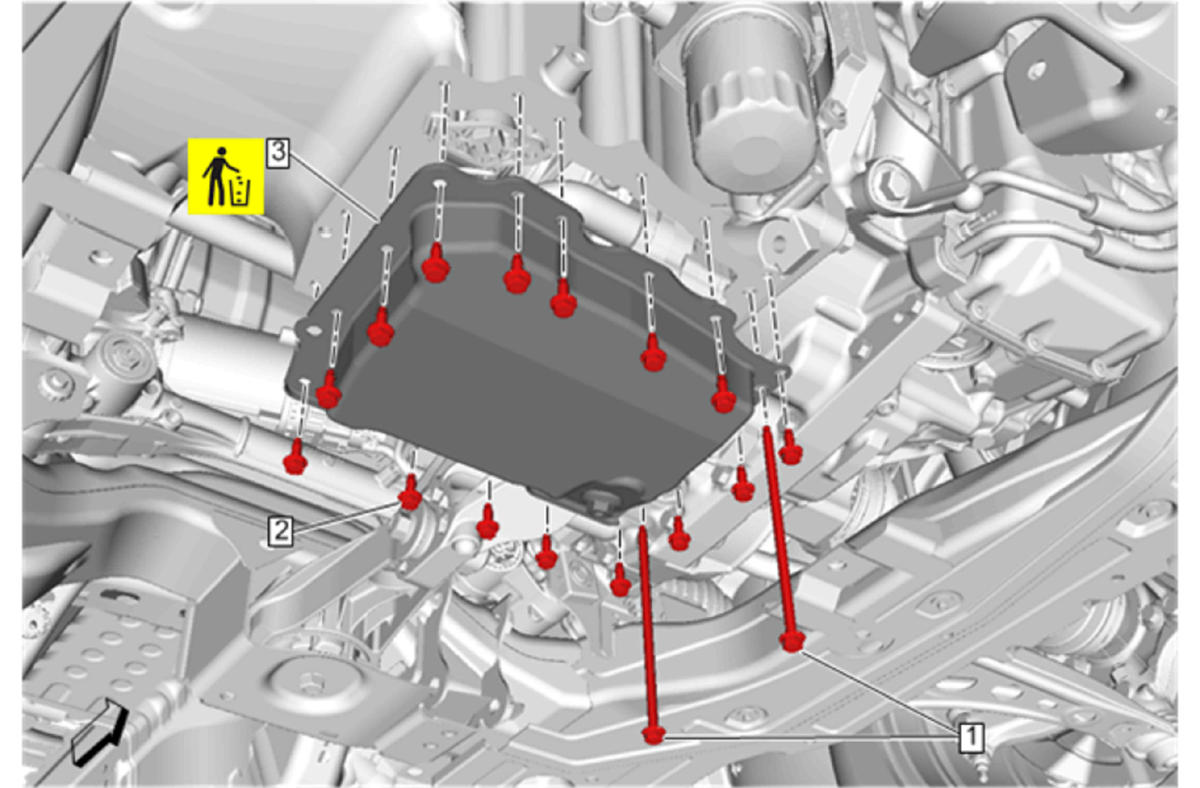

Fig 1: Lower Oil Pan

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Engine Oil and Oil Filter Replacement Exhaust Front Pipe Replacement (LTG)
1	Lower Oil Pan Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Lower Oil Pan Bolt [15x] CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
3	Lower Oil Pan Procedure Apply a 2.25 mm bead of sealer on the level part of the flange around the perimeter of the lower oil pan. Refer to Adhesives, Fluids, Lubricants and Sealers NOTE: The lower crankcase surface must be free of contamination prior to applying the sealer. The oil pan must be fastened to final torque specification within 60 minutes of applying the sealer.
