Installation Procedure

WARNING: This page is about a different variant/trim than selected.

NOTE: For ease of installation, all engine mount bolts should be hand started prior to performing final tightening steps.

Position the engine mount (2) then hand start the NEW bolts (1).

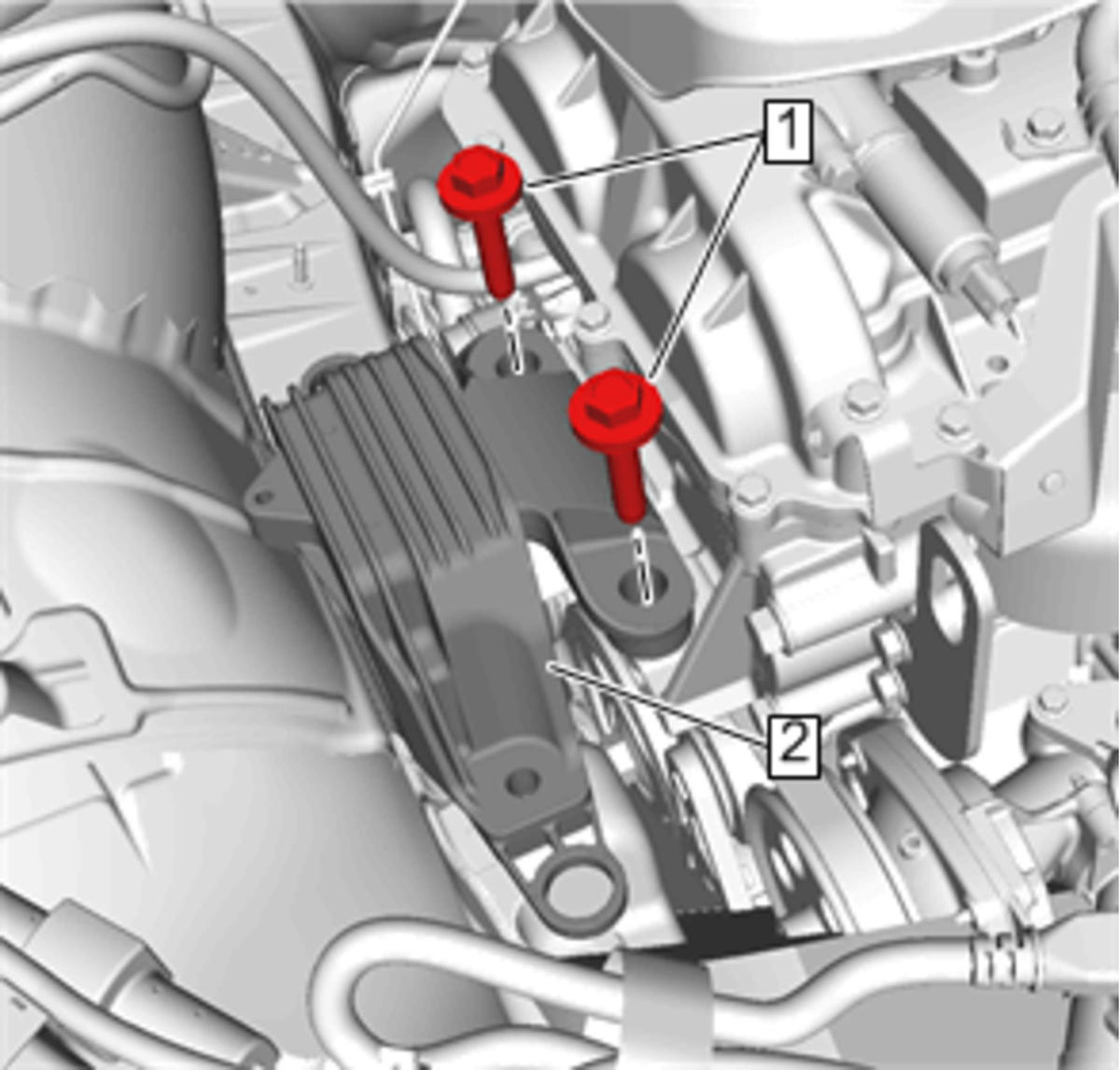

Fig 1: Engine Mount Bolt
Courtesy of GENERAL MOTORS COMPANY

CAUTION: Refer to Fastener Caution .

CAUTION: Refer to Torque-to-Yield Fastener Caution .

NOTE: Install NEW bolts.

Tighten
1. First Pass: 100 N.m (74 lb ft)
2. Final Pass: 75 degrees
Hand start NEW engine mount to engine mount bracket bolts (1).

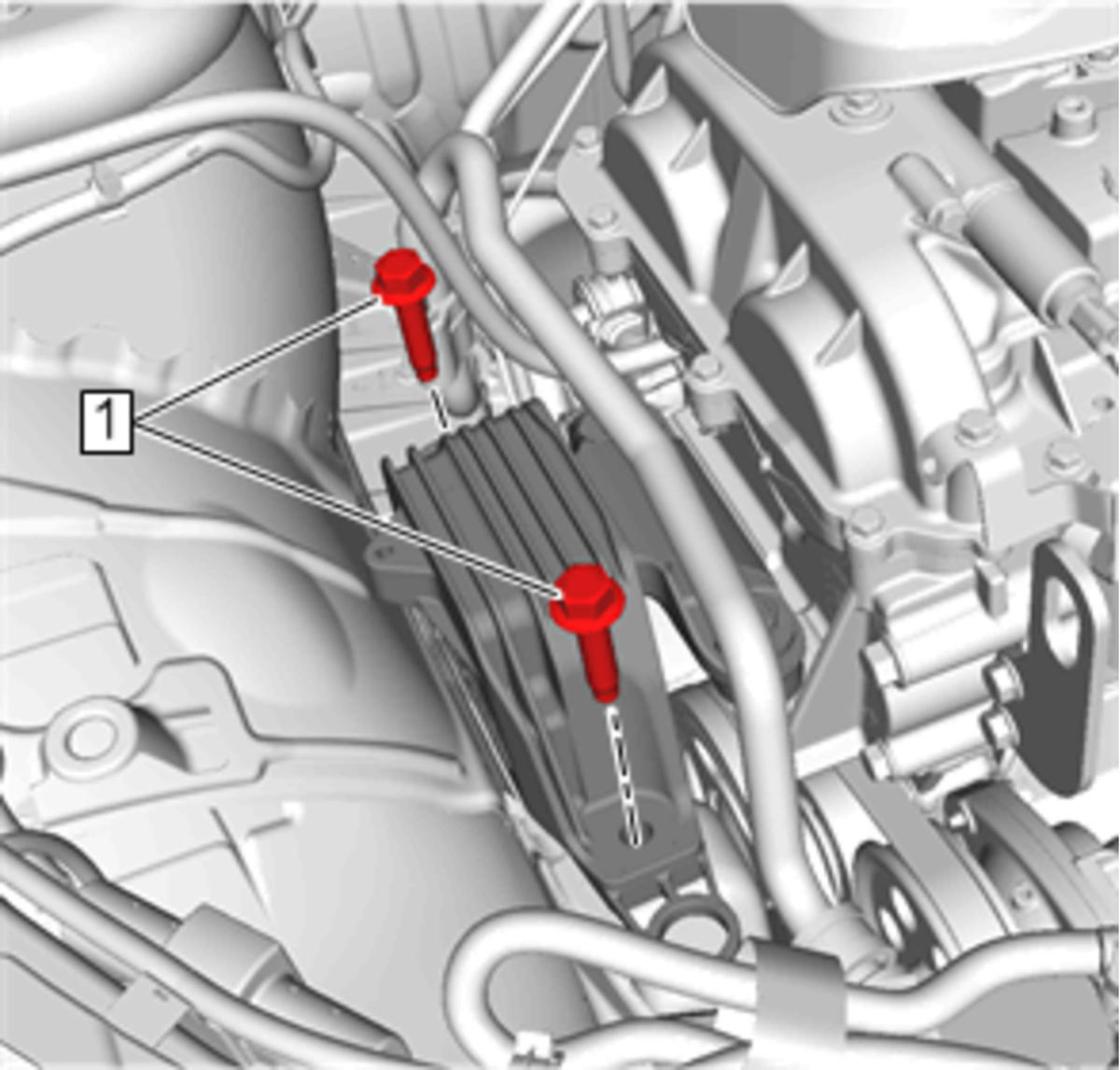

Fig 2: Engine Mount To Engine Mount Bracket Bolts
Courtesy of GENERAL MOTORS COMPANY

NOTE: Install NEW bolts.
With the mount fasteners hand tightened, release the tension from the engine support fixture.
1. Shake the powertrain vigorously by hand to allow the powertrain to settle.
Tighten the NEW engine mount to engine mount bracket bolts (1).
Tighten
1. First Pass: 100 N.m (74 lb ft)
2. Final Pass: 75 degrees
Engine Mount Brace (3) - Install

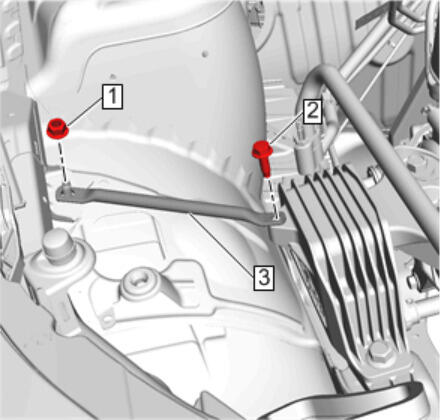

Fig 3: Engine Mount Brace Nut
Courtesy of GENERAL MOTORS COMPANY
Engine Mount Brace Nut (1) - Install and tighten 22 N.m (16 lb ft)
Engine Mount Brace Bolt (2) - Install and tighten 22 N.m (16 lb ft)
Engine Support Fixture - Remove Engine Support Fixture
Air Cleaner Assembly - Install Air Cleaner Assembly Replacement
Intake Manifold Cover - Install Intake Manifold Cover Replacement
