Crankshaft Front Oil Seal Replacement

WARNING: This page is about a different variant/trim than selected.

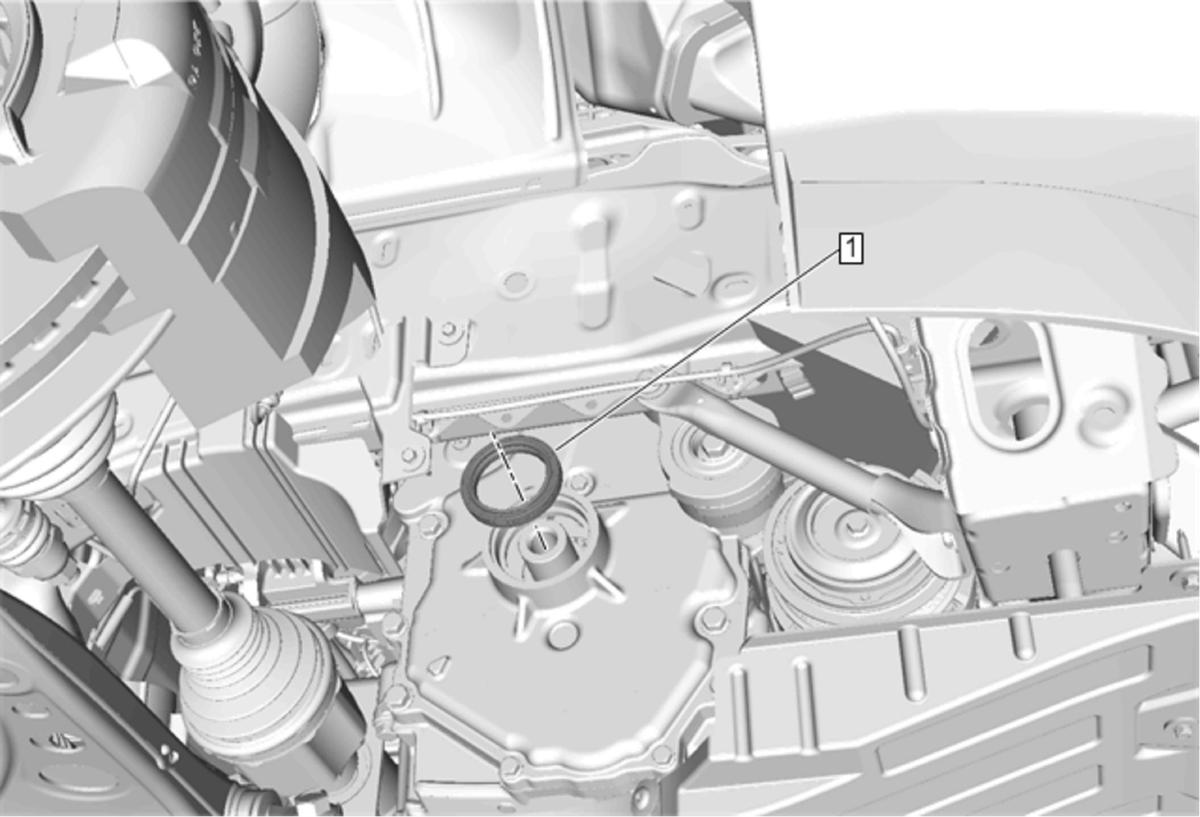

Fig 1: Crankshaft Front Oil Seal

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Crankshaft Balancer Replacement
1	Crankshaft Front Oil Seal Procedure Use a suitable tool to remove the seal. Use the EN 50820 Front Crankshaft Seal Installer to install the seal. Special Tools EN 50820 Front Crankshaft Seal Installer Equivalent regional tools: Special Tools

Callout

Component Name

Crankshaft Front Oil Seal

Procedure

Special Tools
EN 50820 Front Crankshaft Seal Installer
Equivalent regional tools: Special Tools
