Positive Crankcase Ventilation Valve Turbocharger Components
WARNING: This page is about a different variant/trim than selected.

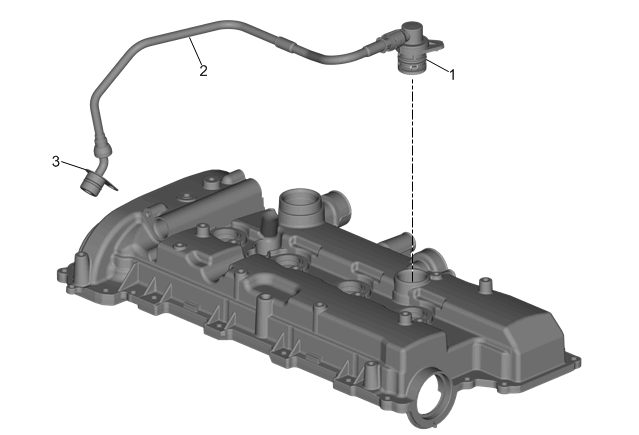

Positive Crankcase Ventilation Valve Turbocharger Components
| Callout | Component Name |
|---|---|
| Preliminary Procedure Inspect each component while attached to the camshaft cover. Do not remove the PCV components unless inspection indicates a suspect component. Replace the PCV valve, PCV tube assembly and PCV hose fitting as an assembly. The connections between these components are tamper-proof and cannot be disassembled. |
|
| 1 | Positive Crankcase Ventilation Valve
NOTE:
When the PCV valve is removed, small particles of the valve will break and fall into the cover. Procedure Inspect the PCV valve. If the PCV valve is suspect, use a suitable tool to pry the valve off of the cover. Retrieve any particles that fall onto the baffle in the cover. Discard the valve and particles. |
| 2 | Positive Crankcase Ventilation Tube |
| 3 | Positive Crankcase Ventilation Hose Fitting |
