Low Reference Bus (3 of 3)

WARNING: This page is about a different variant/trim than selected.

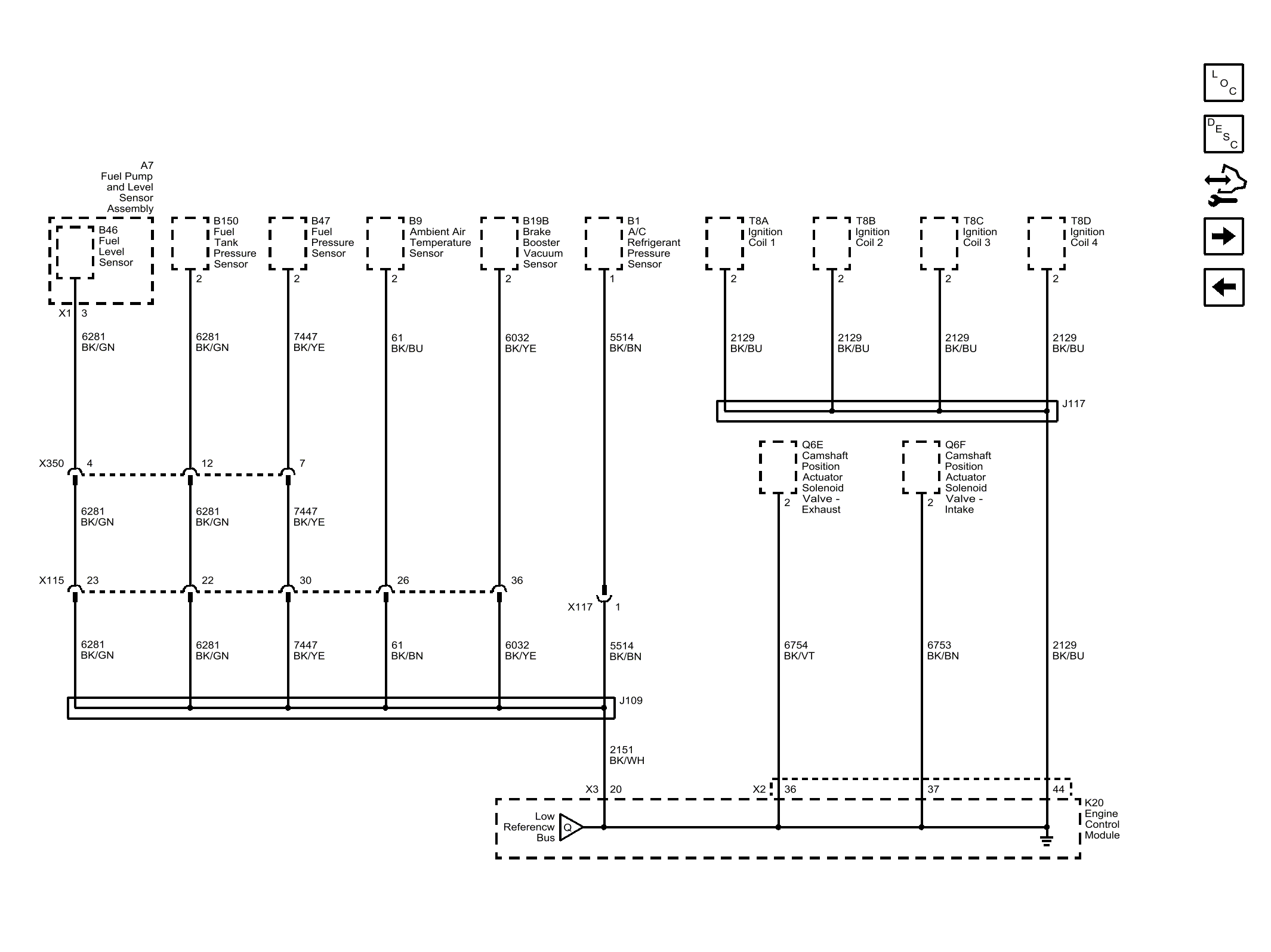

Fig 1: Low Reference Bus (3 of 3)

GM4475296

Courtesy of GENERAL MOTORS COMPANY
