Fuel Controls - Fuel Injectors and High Pressure Control

WARNING: This page is about a different variant/trim than selected.

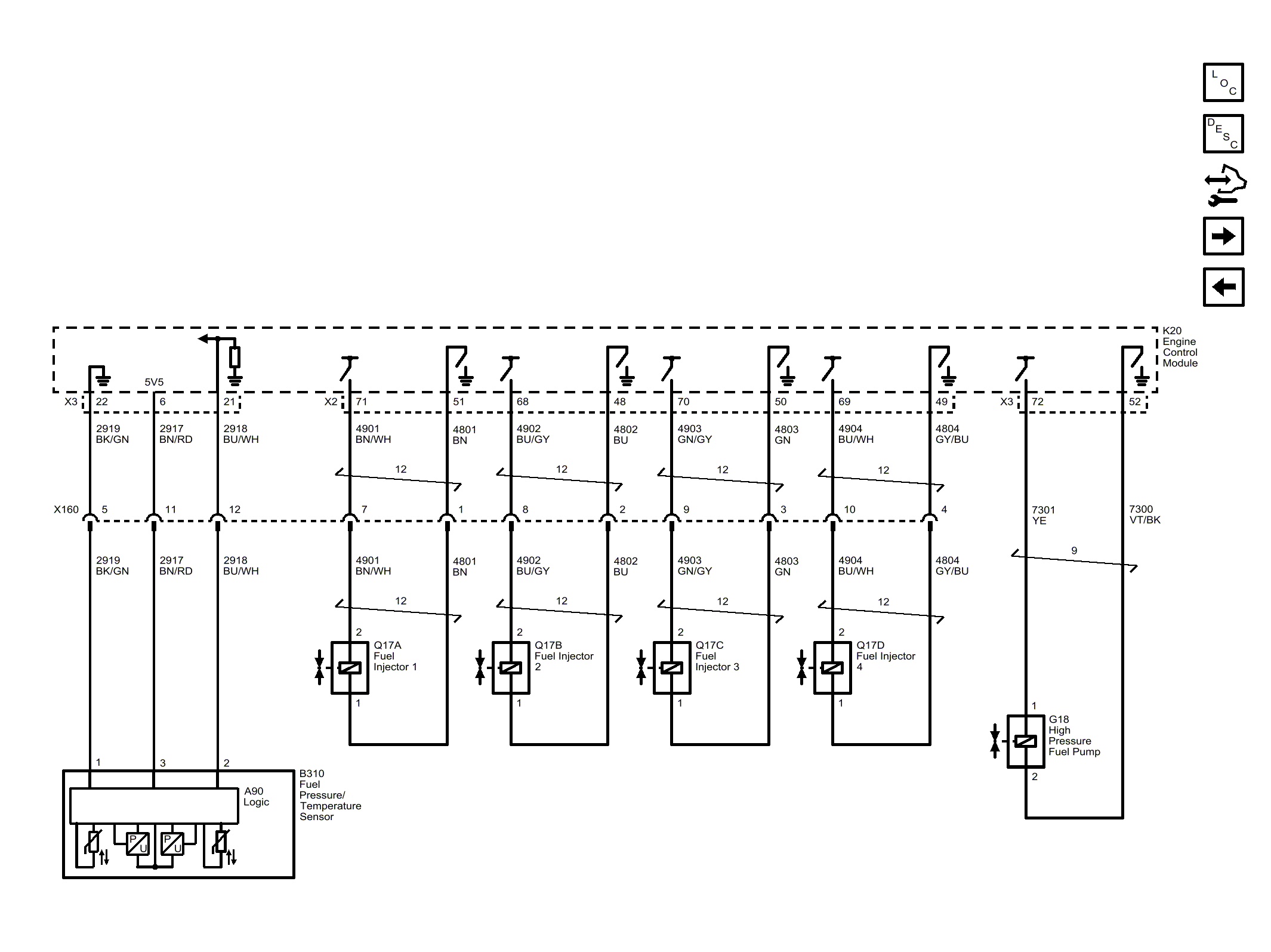

Fig 1: Fuel Controls - Fuel Injectors and High Pressure Control
GM4475306Courtesy of GENERAL MOTORS COMPANY
