Drive & Driven Sprocket (W/LINK) Package
WARNING: This page is about a different variant/trim than selected.
NOTE:

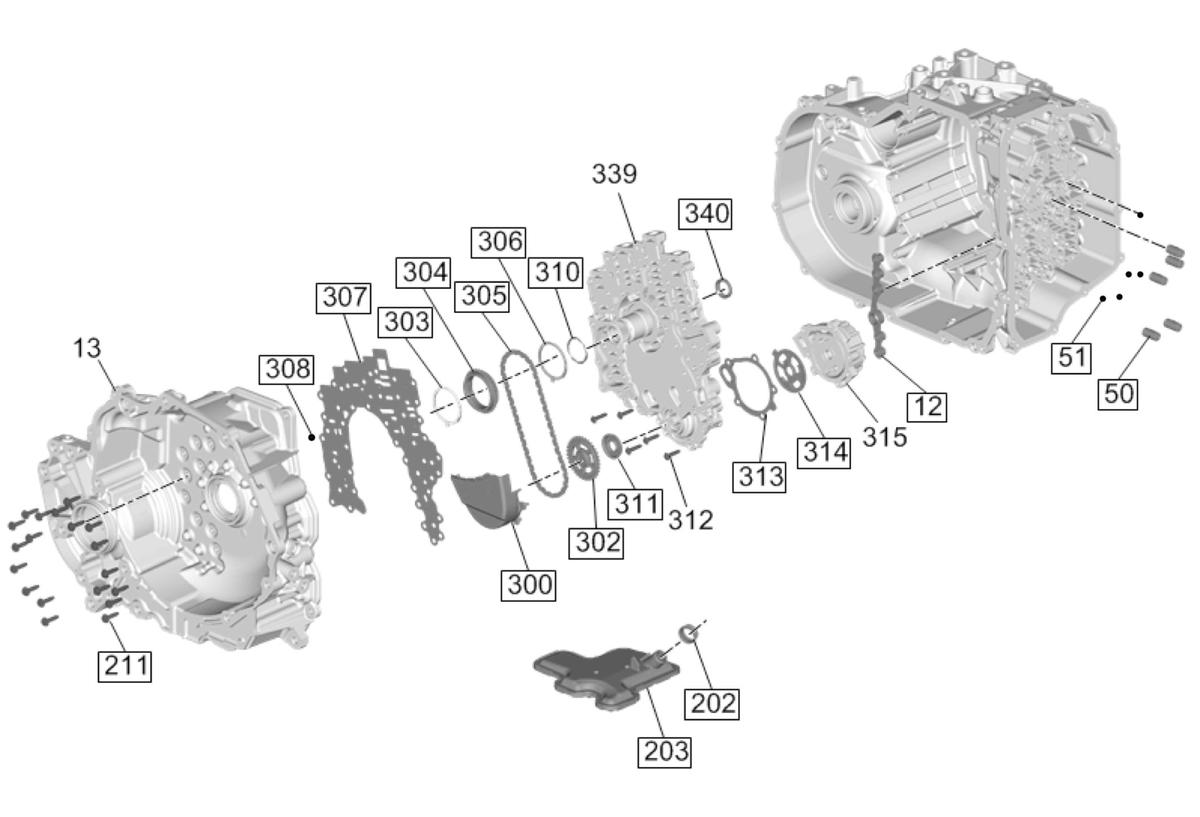

Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.
Drive & Driven Sprocket (W/LINK) Package
| Callout | Quantity | Component Name |
|---|---|---|
| 12 | 1 | Automatic Transmission Fluid Pump Seal |
| 50 | 5 | 1-2-3-4 Low and Reverse Clutch Fluid Passage Seal |
| 51 | QTY | Control Valve Body Ball Check Valve - Model Dependent |
| 202 | 1 | Automatic Transmission Fluid Filter Seal |
| 203 | 1 | Automatic Transmission Fluid Filter |
| 211 | 19 | Automatic Transmission Fluid Pump Cover Bolt |
| 300 | 2 | Automatic Transmission Fluid Baffle Bolt |
| 302 | 1 | Driven Sprocket |
| 303 | 1 | Drive Sprocket Thrust Washer- Rear |
| 304 | 1 | Drive Sprocket |
| 305 | 1 | Drive Link |
| 306 | 1 | Drive Sprocket Thrust Washer- Front |
| 307 | 1 | Auxiliary Control Valve Body Spacer Plate |
| 308 | 1 | Automatic Transmission Fluid Pump Ball Check Valve |
| 310 | 1 | Torque Converter Fluid Seal Ring |
| 311 | 1 | Automatic Transmission Fluid Pump Shaft Seal |
| 313 | 1 | Automatic Transmission Fluid Pump Gasket |
| 314 | 1 | Automatic Transmission Fluid Pump Pressure Plate Seal |
| 340 | 1 | Stator Shaft Seal |
