Control Valve Body Solenoid Kit
WARNING: This page is about a different variant/trim than selected.
NOTE:

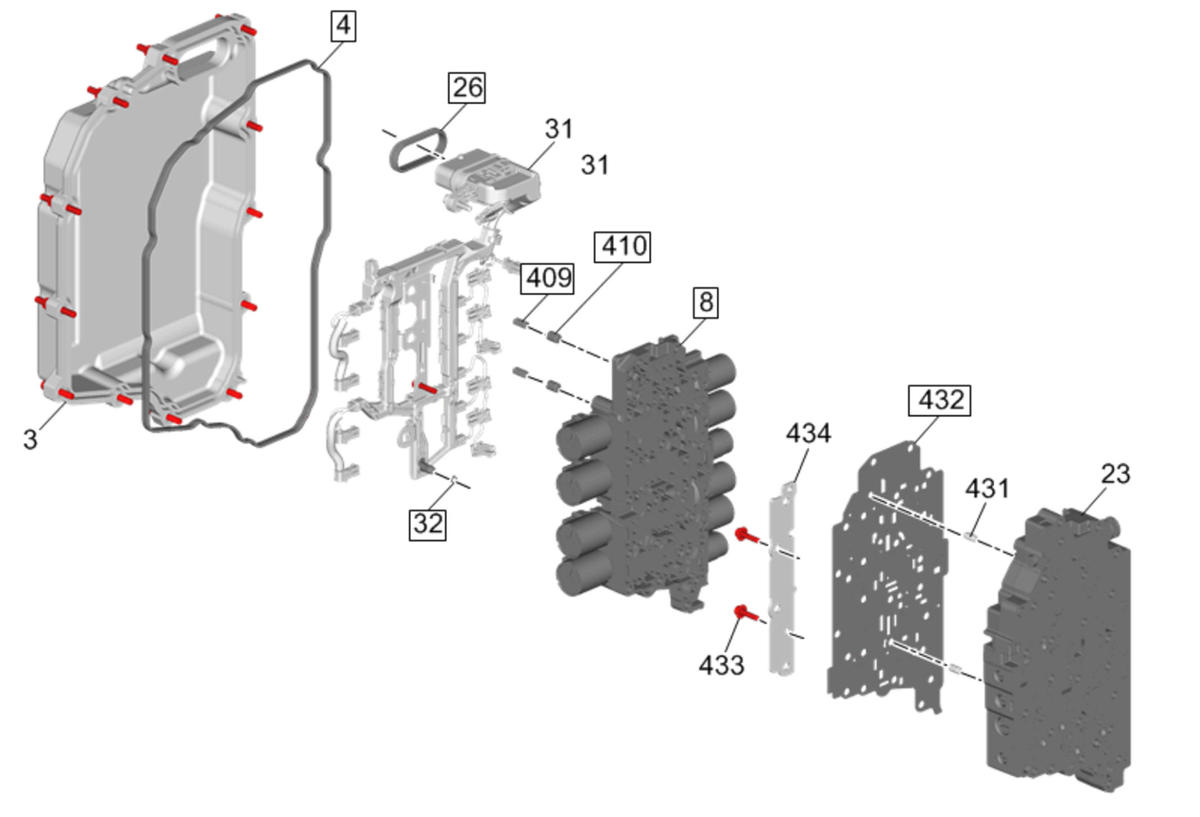

Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.
Control Valve Body Solenoid Kit
| Callout | Quantity | Component Name |
|---|---|---|
| 4 | 1 | Control Valve Body Cover Gasket |
| 8 | 1 | Control Valve Solenoid Body |
| 26 | 1 | Body Side Wiring Harness Opening Seal |
| 32 | 1 | Automatic Transmission Fluid Temperature Sensor Seal |
| 409 | 2 | Variable Feed Solenoid Clutch Accumulator Piston Spring |
| 410 | 2 | Variable Feed Solenoid Clutch Accumulator Piston |
| 432 | 1 | Control Valve Body Spacer Plate |
