Clutch Plate Package
WARNING: This page is about a different variant/trim than selected.
NOTE:

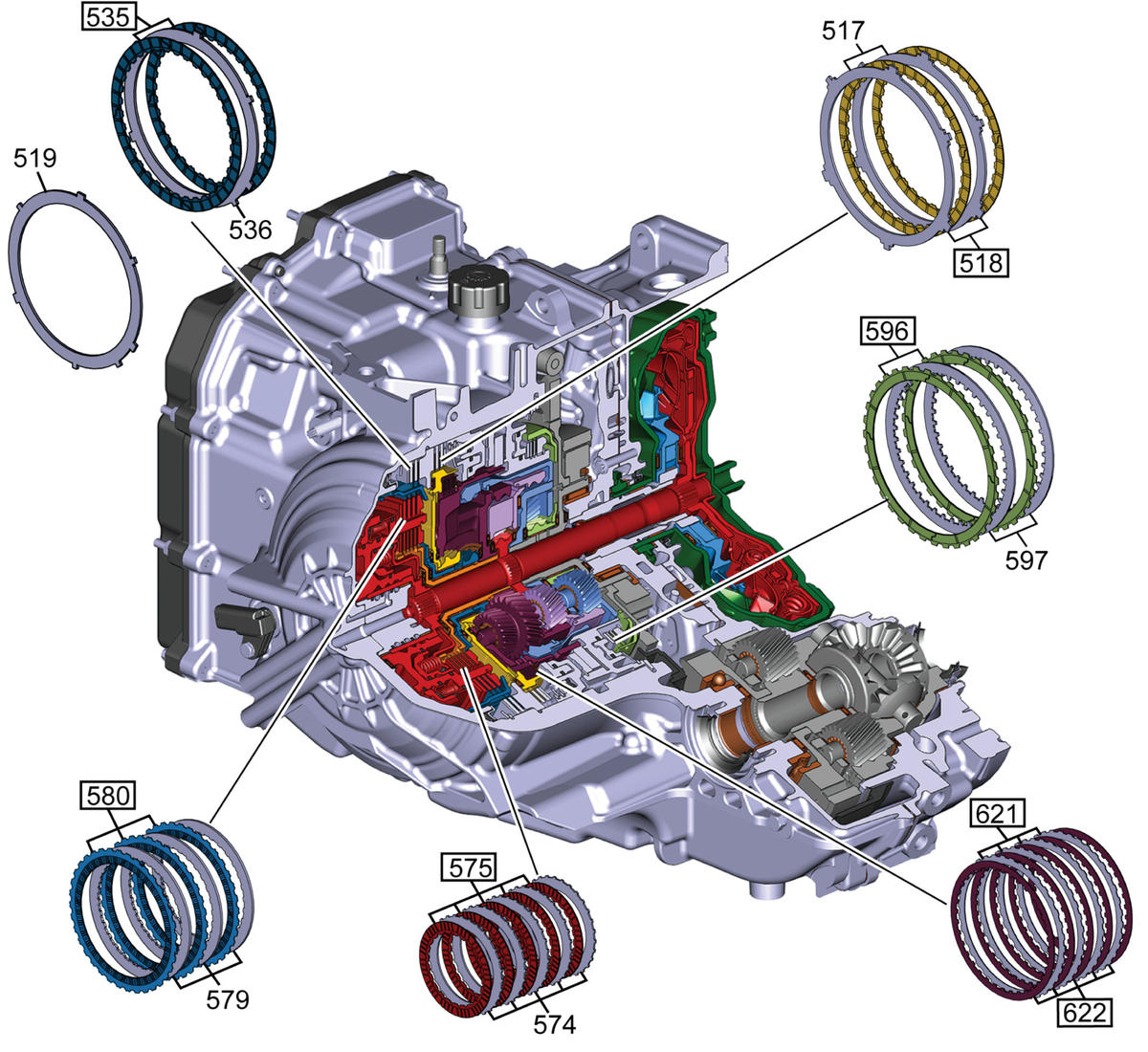

Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.
Clutch Plate Package
| Callout | Quantity | Component Name |
|---|---|---|
| 518 | 2 | 2-9 Clutch Plate - Friction Plate |
| 535 | 2 | 3-8 Clutch Plate - Friction Plate |
| 575 | 5 | 6-7-8-9 Clutch Plate - Friction Plate |
| 580 | 3 | 5-7-Reverse Clutch Plate - Friction Plate |
| 596 | 2 | 1-2-3-4-5-6 Clutch Plate - Friction Plate |
| 621 | 5 | 4th Clutch Plate - Internal Spline |
| 622 | 4 | 4th Clutch Plate - External Spline |
