Automatic Transmission Seal Kit (5 of 6)
WARNING: This page is about a different variant/trim than selected.
NOTE:
Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.

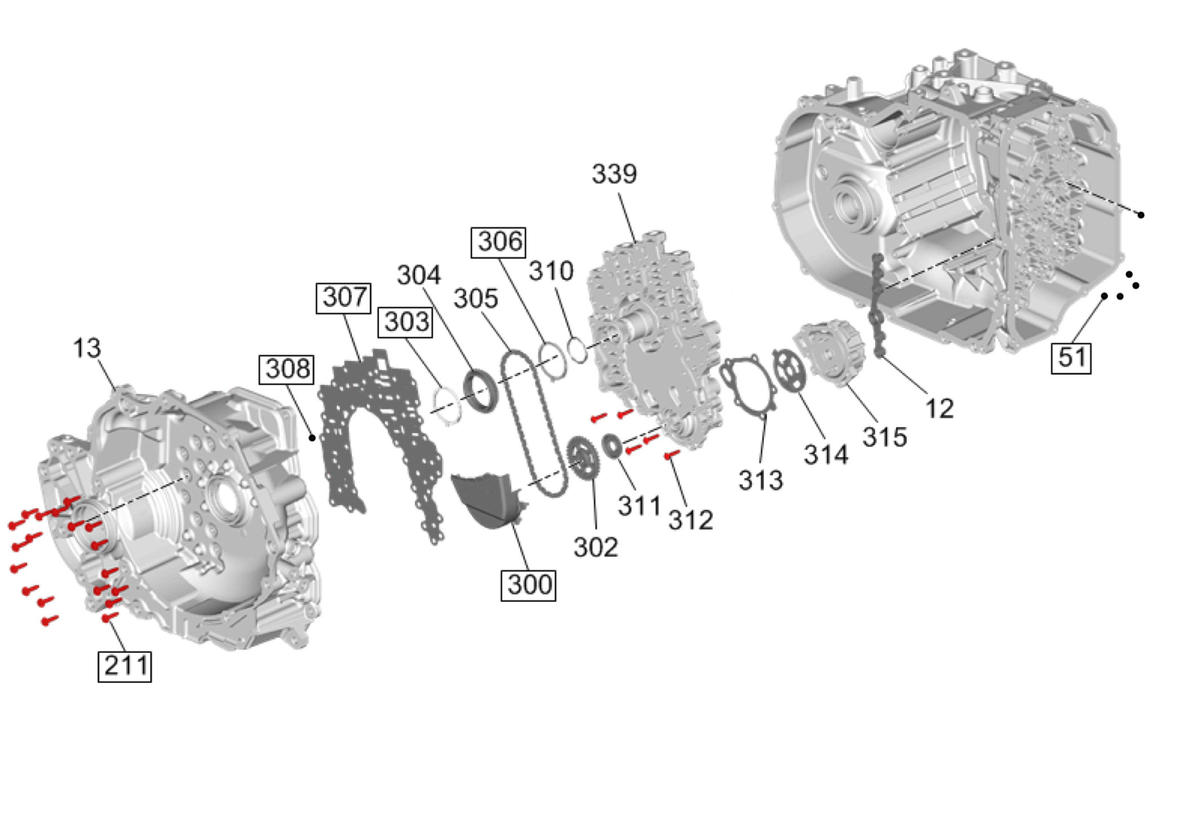

Automatic Transmission Seal Kit (5 of 6)
| Callout | Quantity | Component Name |
|---|---|---|
| 51 | QTY | Control Valve Body Ball Check Valve - Model Dependent |
| 211 | 19 | Automatic Transmission Fluid Pump Cover Bolt |
| 300 | 1 | Automatic Transmission Fluid Baffle |
| 303 | 1 | Driven Sprocket Thrust Washer |
| 306 | 1 | Driven Sprocket Thrust Washer |
| 307 | 1 | Auxiliary Control Valve Body Spacer Plate |
| 308 | 1 | Automatic Transmission Fluid Pump Ball Check Valve |
